Estimated Lead Time : 1-10 working days
Manufacturer : ABB
Product No : 1SVR040008R1300

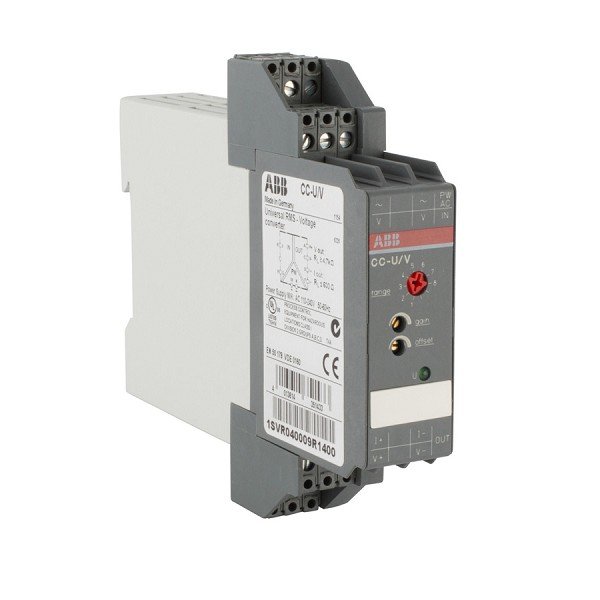

Product Type : CC-U/V Universal signal converter
Universal measuring converter for RMS values of 0-600 V
3-way electrical isolation
RMS converter for voltage signals up to 600 V of any wave form (DC, DC with superimposed AC components, pure sinusoidal, triangular, phase-angle controlled, etc. in a measuring range of 0-600 Hz
Adjustment and operating elements on the front
Short-circuit proof signal outputs
Plug-in connecting terminals for inputs, outputs and supply
Rated supply voltage: 24-48 V DC
Accuracy: ±0.5 % of full-scale
Response time: 150 ms
Dimension (LxWxH) cm : 12.0 x 2.25 x 10.5 cm
Input Signal: Voltage RMS values 0 … 600V
Output Signal: 0 … ± 55 mA / 0 … .± 11V
Ambient temperature range: -20…+60 °C / -40…+80 °C
Weight : 0.128 Kg
Shipping Weight: 1.5Kg
