Estimated Lead Time : 6 – 8 weeks.
Manufacturer : ABB
Product No. : 266DDH.F.S.S.B.2.A.1-V1.L5.S2.I2.C6

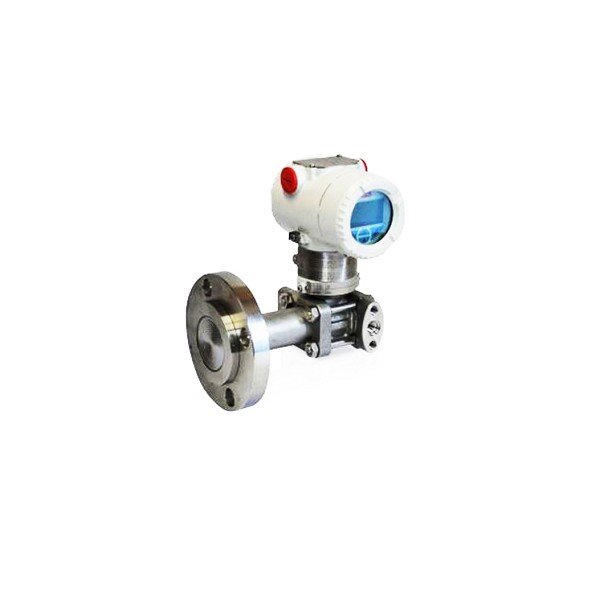

Product type : Differential Pressure Transmitter
Sensor : F = 0.67 and 40 kPa,8 and 160 mbar 3.2 and 64 inH2O
S = Use code
Diaphragm material / Fill fluid : S = AISI 316 L ss,Silicone oil
Process flanges/adapters material and connection : B = AISI 316 L ss (Horizontal connection) , 1/2 – 14 NPT-f through adapter
Bolts/Gasket : 2 = AISI 316 ss , PTFE
Housing material and electrical connection : A = Aluminium alloy ( barrel version) , 1/2 – 14 NPT
Output/additional options : 1 = HART digital communication and 4 to 20 mA , Options requested by “Additional ordering code
Drain/vent valve : V1 = AISI 316 L ss , on process axis
Integral LCD : L1 = TTG (Through-The-Glass) digital LCD controlled display
Surge : S2 = Surge/Transient Protector
Additional tag plate : I2 = Laser printing of tag on stainless steel plate
Certificates : C6 = Certificate of compliance with the order EN 10204–2.1 of instrument design
Shipping Weight : 12Kg
