Estimated Lead Time : 4 – 8 weeks.
Manufacturer : Rosemount
Product no : 3051CD2A02A1AM5BCDFE5H2L4P1Q4

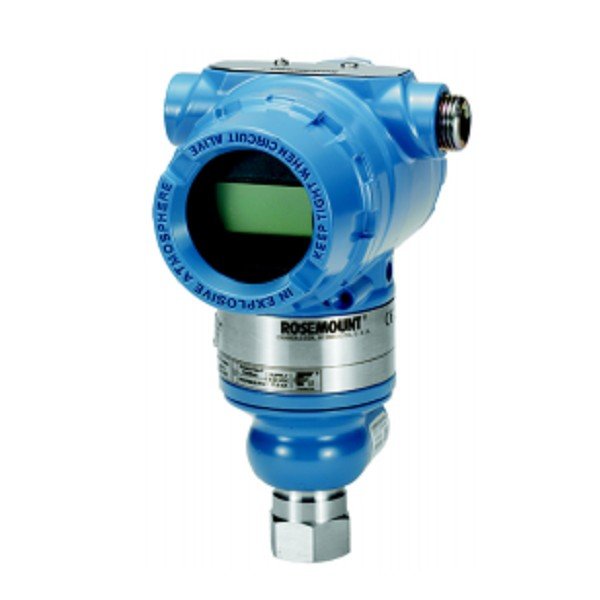

Product type : 3051C Coplanar Pressure Transmitter
Measurement Type : D = Differential
Pressure Ranges (Range/Min. Span) : 2 = –250 to 250 inH2O (–621.60 to 621.60 mbar)
Transmitter output : A = Standard, 4–20 mA with Digital Signal Based on HART Protocol
Materials of Construction : 0 = Alternate process connection
Isolating Diaphragm : 2 = 316L SST
O-ring(Standard) : A = Glass-filled PTFE
Sensor Fill Fluid : 1 = Silicone
Housing Material : A = Aluminum, ½–14 NPTConduit Entry Size
Display Type Standard : M5 = LCD display
Mounting bracket : BC = Traditional flange bracket, B3, all SST
Flange adapters : DF = ½–14 NPT flange adapter(s)
Product certifications : E5 = USA Explosion-proof, Dust Ignition-Proof
Alternate flange : H2 = Traditional flange, 316 SST, SST drain/vent
Bolting material : L4 = Austenitic 316 SST bolts
Pressure testing : P1 = Hydrostatic testing with certificate
Calibration certificate : Q4 = Calibration certificate
Weight : 5 Kg
Shipping Weight: 8 Kg
