Estimated lead time : 6 – 8 Weeks
Manufacturer : Rosemount
Part Number : 3051S2TG5A2B11A1BB4C4D1E1M5P1Q4Q8T1Q15+ 1199WDB61ARCWA7LBB3YDQ15

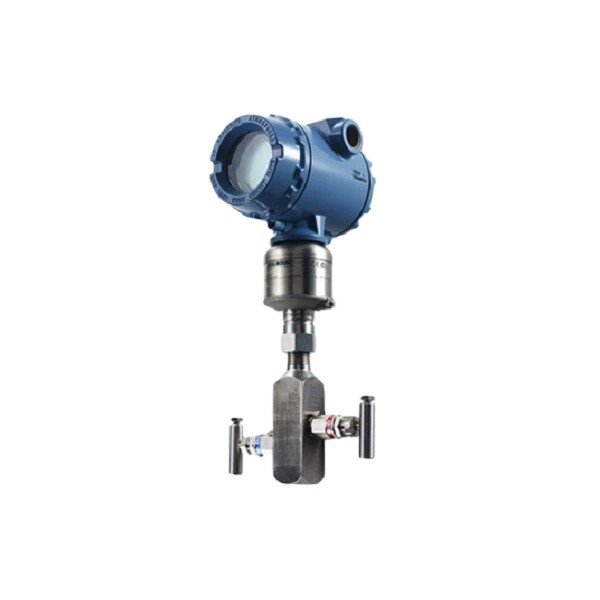

Model 3051S2TG : 3051S Scalable Pressure Transmitter
3051S2TG5A2B11A1BB4C4D1E1M5P1Q4Q8T1Q15
Performance class : 2 = Classic: 0.035% span accuracy, 150:1 rangedown, 15-year stability
Connection type : T = In-line
Measurement type : G = Gauge
Pressure range : 5A = 14.7 to 10000 psi (–1.01 to 689.47 bar) | 0 to 10000 psia (689.47 bar)
Isolating diaphragm : 2 = 316L SST
Process connection : B11 = Assemble to one Rosemount 1199 seal
Transmitter output : A = 4–20 mA with digital signal based on HART®
protocol
Housing style : 1B = Plantweb housinG | Aluminum | M20 x 1.5
Mounting brackeT : B4 = Bracket, all SST, 2-in. pipe and panel
Alarm limit : C4 = NAMUR alarm and saturation levels, high alarm
Hardware adjustments : D1 = Hardware adjustments (zero, span, alarm, security)
Product certifications : E1 = ATEX Flameproof
Display type : M5 = Plantweb™ LCD display
Pressure testing : P1 = Hydrostatic testing with certificate
Calibration certification : Q4 = Calibration certificate
Material traceability certification : Q8 = Material traceability certification per EN 10204 3.1
Transient protection : T1 = Transient terminal block
NACE® certificate : Q15 = Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials
+ 1199WDB61ARCWA7LBB3YDQ15
Housing style : 1A = Plantweb™ housing | Aluminum | ½–14 NPT
Update rate : WA = User configurable update rate
NACE® certificate : Q15 = Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials
Shipping Weight : 12 Kg
