Estimated Lead Time : 8 – 10 Weeks
Manufacturer : Rosemount
Part Number : 3051SFC1CS020N040032JA1A3Q4Q8E5

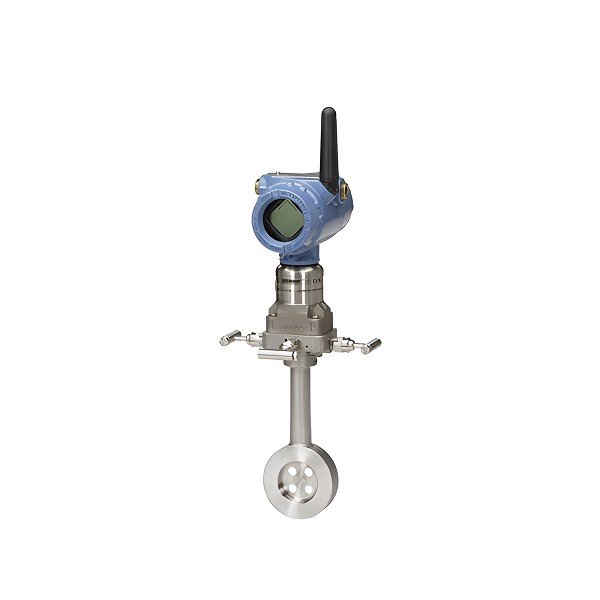

Rosemount 3051SFC Compact Orifice Flowmeter
Model : 3051SFC = Compact Orifice Flowmeter
Measurement type : 1 = Fully Compensated Mass & Energy Flow Calculations – Differential & Static Pressures w/ Temperature
Primary element technology : C = Conditioning Orifice Plate
Material type : S = 316 SST
Line size : 020 = 2-in. (50 mm)
Primary element type : N040 = 0.40 Beta Ratio (b)
Temperature measurement : 0 = No Temperature Sensor
Transmitter connection platform : 3 = Direct-mount
Differential pressure range : 2 = 0 to 250 inH2O (0 to 621,60 mbar)
Static pressure range : J = Gage -14.2 to 800 psig (-0,98 to 55,15 bar)
Transmitter output : A = 4–20 mA with digital signal based on HART protocol
Transmitter housing style : 1A = PlantWeb housing | Material : Aluminum | Conduit entry size : 1/2-14 NPT
Operating frequency and protocol : 3 = 2.4 GHz DSSS, IEC 62591 (WirelessHART)
Transmitter calibration certification : Q4 = Calibration Data Certificate for Transmitter
Material traceability certifications : Q8 = Material Traceability Certification per EN 10204:2004 3.1
Product certifications : E5 = FM Explosion-proof, Dust Ignition-proof
Weight : 12.20 (5.53)
Shipping Weight : 6.5 Kg
