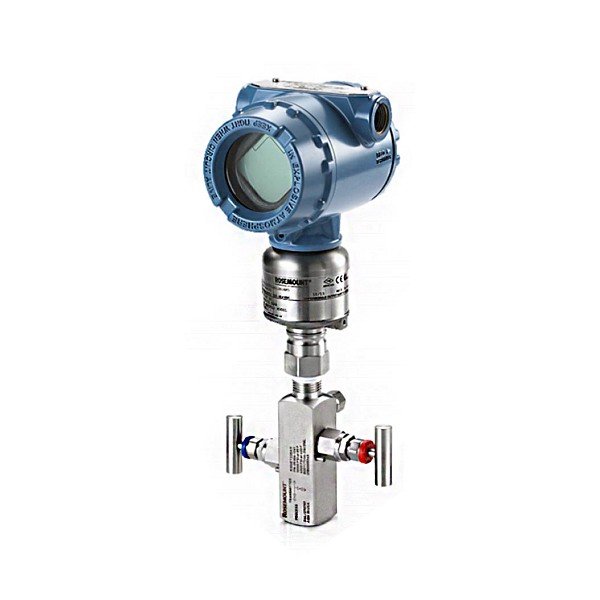

3051TG4A2B31KB4K8M5P1Q4Q8S5QTQ15+0306RT22BA11SG Rosemount In-Line Pressure Transmitter + 0306 Pressure Manifold

Estimated Lead Time : 6 – 8 weeks.

Manufacturer : Rosemount

Product No. : 3051TG4A2B31KB4K8M5P1Q4Q8S5QTQ15+0306RT22BA11SG

Product Type : In-Line Pressure Transmitter + 0306 Pressure Manifold

3051TG4A2B31KB4K8M5P1Q4Q8S5QTQ15 = 3051T In-Line Pressure Transmitter

Measurement type : G = Gage

Pressure range : 4 = –14.7 to 4000 psi (–1,01 to 275,79 bar)

Transmitter output : A = 4–20 mA with digital signal based on HART Protocol

Process connection style : 2B = 1/2–14 NPT female (range 1–5 only)

Isolating diaphragm : 3 = Alloy C-276, Process connection wetted parts material Alloy C-276

Sensor fill fluid : 1 = Silicone

Housing material : K = SST, M20 x 1.5 Conduit entry size

Mounting bracket : B4 = Bracket for 2-in. pipe or panel mounting, all SST

Product certifications : K8 = ATEX Flame-proof, Intrinsic Safety, Type n, Dust (combination of E8, I1, and N1)

Display and interface options : M5 = LCD display

Pressure testing : P1 = Hydrostatic testing with certificate

Calibration certificate : Q4 = Calibration Certificate

Material Traceability Certification : Q8 = Material Traceability Certification per EN 10204 3.1

Integral assembly : S5 = Assemble to Rosemount 306 Integral Manifold Quality certification for safety : QT = Safety certified to IEC 61508 with certificate of FMEDA

Material Traceability Certification : Q8 = Material Traceability Certification per EN 10204 3.1

QT = Safety certified to IEC 61508 with certificate of FMEDA

NACE® certificate : Q15 = Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials

Weight : 3.9 Kg

0306RT22BA11SG = 0305 Pressure manifold

Manufacturer : R = Rosemount

Manifold style : T = Threaded

Manifold type : 2 = Two valve

Body : 2 = 316 SST/316L SST, Bonnet = 316 SST, Stem and tip/ball = 316 SST

Process connection style : BA = 1/2–14 female NPT process connection for in-line transmitter

Packing material : 1 = PTFE

Valve seat : 1 = Integral

Material recommendations for NACE : SG = Sour gas (meets NACE MR0175/ISO 15156, MR0103/ISO 17495)

Weight : 1.1 Kg

Total weight : 5 Kg

Shipping Weight : 10 Kg
