Estimated Lead Time : 1 – 10 Working days.
Manufacturer : Siemens
Product No. : 6ES7138-4FA05-0AB0

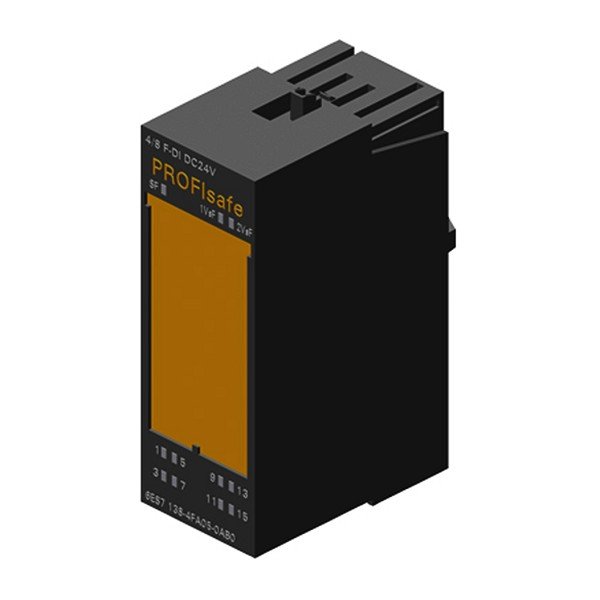

Product Type : SIMATIC DP, Electronics Module f. ET200S
Rated value (DC) : 24 V DC
Encoder supply
Number of outputs : 2
Type of output voltage : min. L+ (-1.5 V)
Short-circuit protection : Yes; Electronic (response threshold 0.7 A to 1.8 A)
Output current
Rated value : 300 mA
permissible range, lower limit : 0 mA
permissible range, upper limit : 300 mA
Power loss, typ. : 4 W
Address space per module
Inputs : 6 byte
Outputs : 4 byte
Number of digital inputs : 8; 8 (one-channel); 4 (two-channel)
Dimensions (LxWxH) : 5.2cm x 3cm x 8.1cm
Weight : 0.078 Kg
Shipping Weight : 1 Kg
