Estimated Lead Time : 1 – 10 Working Days

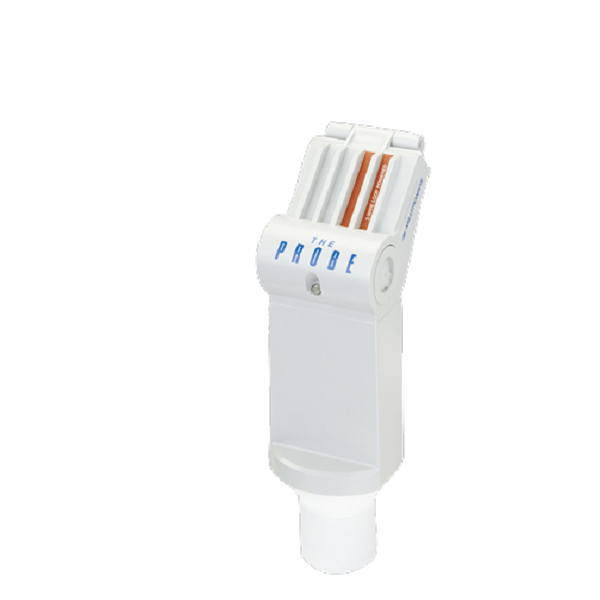

Manufacturer : Siemens
Product No. : 7ML1201-2EE00
Product Type : The Probe Ultrasonic level transmitter
Measuring principle : ultrasonic
Beam angle : 12 Degree
Measuring range (minimum) : 0,25 m
Measuring range (maximum) : 8 m
Current output :
Signal range : 4 … 20 mA
Load (maximum) : 750 Ohm
Measuring accuracy, relative : 0,25 %
Base factor : Measured value
Medium temperature (minimum) : -40 °C
Medium temperature (maximum) : 60 °C
Degree of pollution : Pollution degree 4
Overvoltage class : Installation category II
Ambient temperature during operation (minimum) : -40 °C
Ambient temperature during operation (maximum) : 60 °C
IP rating : IP65
NEMA Enclosure Type : NEMA 4X
Voltage type : DC
Nominal voltage, DC : 24 V
Supply voltage, DC :
Supply voltage, DC (minimum) : 18 V
Supply voltage, DC (maximum) : 30 V
Current consumption : 0,2 A
Power consumption effective power : 5 W
Shipping Weight : 3 Kg
