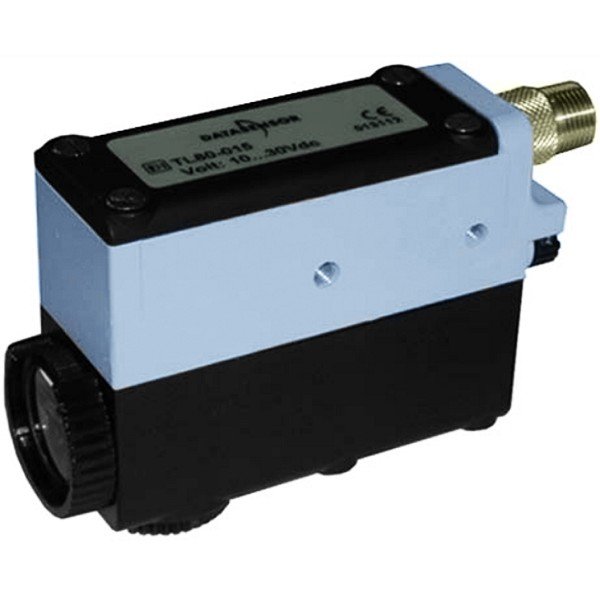

Datalogic- Analogue Sensors with Led Emission TL80-011L

Analogue Sensors with Led Emission

TL80 SERIES

Red or green selectable LED emission

Threshold setting with multi-turn trimmer

9, 18, 28 mm lenses and fibre-optics available

Selectable NPN/PNP output and dark/light mode

Power supply: 10..30 Vdc, reverse polarity protection

Consumption: 80 mA max.

Light emission: red 635 nm / green 565 nm LED

Spot dimension: 1.5 x 5 mm (9 mm lens), 2 x 7 mm (18 mm lens), 3 x 10 mm (28 mm lens)

Operating distance: 7 … 11 mm (9 mm lens), 16 … 20 mm (18 mm lens), 25 … 31 mm (28 mm lens)

Operating distance with fibre-optics: 0 … 5 mm proximity, 0 … 15 mm through beam, Depth of field: ±2 mm (9 and 18 mm lenses), ±3 mm (28 mm lens)

Setting: multi-turn trimmer

Indicators: red OUTPUT LED, red LEDs for trimmer rotation direction

Output type: NPN or PNP, Rpull-down/up 10 k?

Saturation voltage: 1.2 V max. (NPN vers.), 2.2 V max. (PNP vers.)

Output current: 200 mA max.; short-circuit protection

Response time: 50 µs (8, 18 mm, fibre-optic vers.), 166 µs (28 mm vers.)

Switching frequency: 10 KHz max. (8, 18 mm, fibre-optic vers.), 3.3 KHz max. (28 mm vers.)

Operating mode: dark/light selectable

Analog output range: 0 … 5.5 Vdc (2 Vdc on white 90%), 2.2 k? output resistance

Timing function: 20 ms minimum output ON

Connection: M12 4-pole conn., 3 m Ø 5 mm cable or cable with Amphenol connector

Electrical protection: class 1

Mechanical protection: IP67

Housing material: ZAMA

Lens material: glass

Fibre-optic material: fibre in glass / sheath in metal, fibre in PMMA / sheath in PE (OF-30)

Weight: 550 g max.

Operating temerature: -10 … +55°C

Storage temperature: -20 … +70°C

Fibre operating temperature: -30 … +150°C (glass OF vers.), -30 … +60°C (OF-30)

Reference standard: EN 60947-5-2

Shipping Weight : 2 Kg
