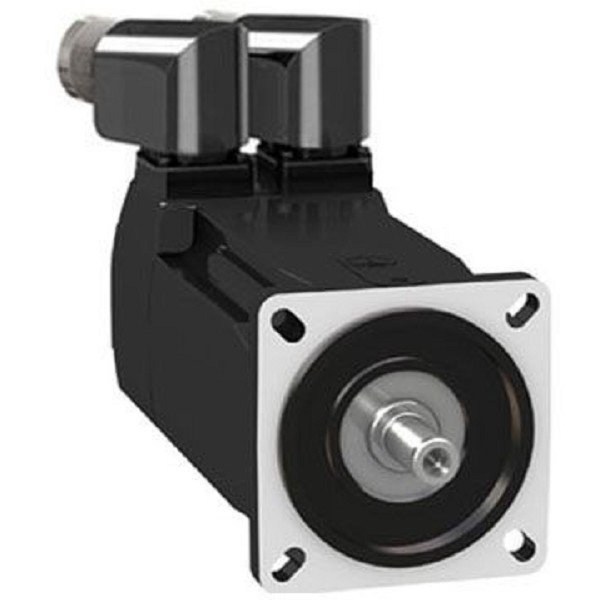

BMH0703P12F2A Schneider Electric Servo motor BMH, Lexium 32, 3.4Nm, 8000rpm, keyed shaft, with brake, IP54, 128 multiturn encoder, 3 phases

Estimated Lead Time : 1 – 10 working days.
Product or Component Type : Servo motor
Device short name : BMH
Maximum mechanical speed : 8000 rpm
Continuous stall torque :
3.4 N.m LXM32.D18N4 6 A, 400 V, three phase
3.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Peak stall torque :
10.2 N.m LXM32.D18N4 6 A, 400 V, three phase
10.2 N.m LXM32.D18N4 6 A, 480 V, three phase
Nominal output power :
1300 W LXM32.D18N4 6 A, 400 V, three phase
1300 W LXM32.D18N4 6 A, 480 V, three phase
Nominal torque :
2.4 N.m LXM32.D18N4 6 A, 400 V, three phase
2.4 N.m LXM32.D18N4 6 A, 480 V, three phase
Nominal speed :
5000 rpm LXM32.D18N4 6 A, 400 V, three phase
5000 rpm LXM32.D18N4 6 A, 480 V, three phase
Product compatibility : LXM32.D18N4 400…480 V three phase
Shaft end : Keyed
IP Degree of Protection : IP54 standard
Speed feedback resolution : 131072 points/turn x 4096 turns
Holding brake : With
Mounting Support : International standard flange
Electrical Connection : Rotatable right-angled connectors
Range Compatibility : Lexium 32
[Us] rated supply voltage : 480 V
Phase : Three phase
Continuous stall current : 3.91 A
Continuous power : 1.68 W
Maximum current Irms : 12.6 A LXM32.D18N4
Maximum permanent current : 12.57 A
Second shaft : Without second shaft end
Shaft diameter : 14 mm
Shaft length : 30 mm
Key width : 20 mm
Feedback type : Multiturn SinCos Hiperface
Holding torque : 3 N.m holding brake
Motor flange size : 70 mm
Number of motor stacks : 3
Torque constant : 0.87 N.m/A 120 °C
Back emf constant : 55.8 V/krpm 120 °C
Number of motor poles : 10
Rotor inertia : 1.78 kg.cm²
Stator resistance : 2.65 Ohm 20 °C
Stator inductance : 8.6 mH 20 °C
Stator electrical time constant : 3.2 ms 20 °C
Maximum radial force Fr :
730 N 1000 rpm
580 N 2000 rpm
510 N 3000 rpm
460 N 4000 rpm
430 N 5000 rpm
400 N 6000 rpm
Maximum axial force Fa : 0.2 x Fr
Brake pull-in power : 7 W
Type of cooling : Natural convection
Length : 225 mm
Centring collar diameter : 60 mm
Centring collar depth : 2.5 mm
Number of mounting holes : 4
Mounting holes diameter : 5.5 mm
Circle diameter of the mounting holes : 82 mm
Product Weight : 4 kg
Shipping weight : 5 kg
