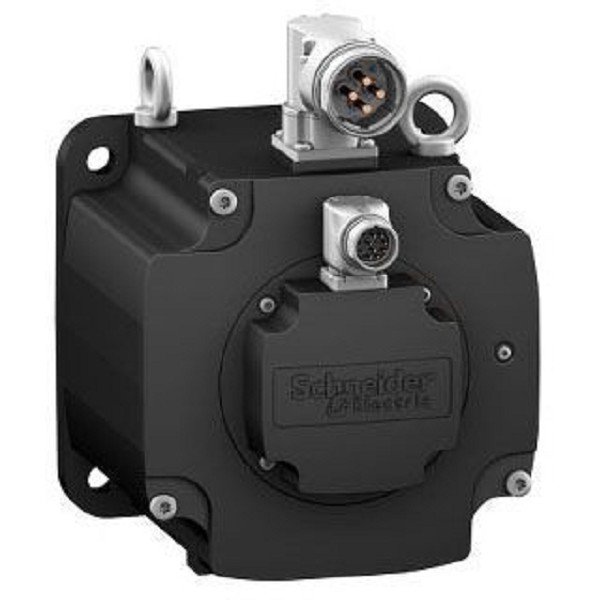

BMH1901P22F2A Schneider Electric Servo motor BMH, Lexium 32, 30Nm, 5000rpm, untapped shaft, with brake, IP65/IP67, 128 multiturn encoder

Estimated Lead Time : 1 – 10 working days.
Product or Component Type : Servo motor
Device short name : BMH
Maximum mechanical speed : 4000 rpm
Continuous stall torque :
265.52 lbf.in (30 N.m) LXM32.D72N4 24 A, 400 V, three phase
265.52 lbf.in (30 N.m) LXM32.D72N4 24 A, 480 V, three phase
265.52 lbf.in (30 N.m) LXM32MD85N4 32 A, 400 V, three phase
265.52 lbf.in (30 N.m) LXM32MD85N4 32 A, 480 V, three phase
265.52 lbf.in (30 N.m) LXM32MC10N4 40 A, 400 V, three phase
265.52 lbf.in (30 N.m) LXM32MC10N4 40 A, 480 V, three phase
Peak stall torque :
687.70 lbf.in (77.7 N.m) LXM32.D72N4 24 A, 400 V, three phase
687.70 lbf.in (77.7 N.m) LXM32.D72N4 24 A, 480 V, three phase
766.47 lbf.in (86.6 N.m) LXM32MD85N4 32 A, 400 V, three phase
766.47 lbf.in (86.6 N.m) LXM32MD85N4 32 A, 480 V, three phase
793.91 lbf.in (89.7 N.m) LXM32MC10N4 40 A, 400 V, three phase
793.91 lbf.in (89.7 N.m) LXM32MC10N4 40 A, 480 V, three phase
Nominal output power :
4800 W LXM32.D72N4 24 A, 400 V, three phase
4800 W LXM32.D72N4 24 A, 480 V, three phase
5180 W LXM32MD85N4 32 A, 400 V, three phase
5180 W LXM32MD85N4 32 A, 480 V, three phase
5180 W LXM32MC10N4 40 A, 400 V, three phase
5180 W LXM32MC10N4 40 A, 480 V, three phase
Nominal torque :
162.85 lbf.in (18.4 N.m) LXM32.D72N4 24 A, 400 V, three phase
162.85 lbf.in (18.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
146.04 lbf.in (16.5 N.m) LXM32MD85N4 32 A, 400 V, three phase
146.04 lbf.in (16.5 N.m) LXM32MD85N4 32 A, 480 V, three phase
146.04 lbf.in (16.5 N.m) LXM32MC10N4 40 A, 400 V, three phase
146.04 lbf.in (16.5 N.m) LXM32MC10N4 40 A, 480 V, three phase
Nominal speed :
2500 rpm LXM32.D72N4 24 A, 400 V, three phase
2500 rpm LXM32.D72N4 24 A, 480 V, three phase
3000 rpm LXM32MD85N4 32 A, 400 V, three phase
3000 rpm LXM32MD85N4 32 A, 480 V, three phase
3000 rpm LXM32MC10N4 40 A, 400 V, three phase
3000 rpm LXM32MC10N4 40 A, 480 V, three phase
Product compatibility : LXM32.D18N4 400…480 V three phase
Shaft end : Smooth shaft
IP Degree of Protection :
IP65 standard
IP67 with IP67 kit
Speed feedback resolution : 131072 points/turn
Holding brake : With
Mounting Support : International standard flange
Electrical Connection : Rotatable right-angled connectors
Range Compatibility : Lexium 32
[Us] rated supply voltage : 480 V
Phase : Three phase
Continuous stall current : 23.2 A
Continuous power : 5.24 W
Maximum current Irms : 72 A LXM32.D72N4
Maximum permanent current : 89.6 A
Second shaft : Without second shaft end
Shaft diameter : 38 mm
Shaft length : 80 mm
Feedback type : Multiturn SinCos Hiperface
Holding torque : 80 N.m holding brake
Motor flange size : 190 mm
Number of motor stacks : 1
Torque constant : 1.3 N.m/A at 120 °C
Back emf constant : 87.6 V/krpm at 120 °C
Number of motor poles : 10
Rotor inertia : 71.7 kg.cm²
Stator resistance : 0.24 Ohm at 20 °C
Stator inductance : 5.08 mH at 20 °C
Stator electrical time constant : 21.2 ms at 20 °C
Maximum radial force Fr :
3730 N at 1000 rpm
Maximum axial force Fa : 0.2 x Fr
Brake pull-in power : 40 W
Type of cooling : Natural convection
Length : 250 mm
Centring collar diameter : 180 mm
Centring collar depth : 4 mm
Number of mounting holes : 4
Mounting holes diameter : 14 mm
Circle diameter of the mounting holes : 215 mm
Product Weight : 20.5 kg
Shipping weight : 22 kg
