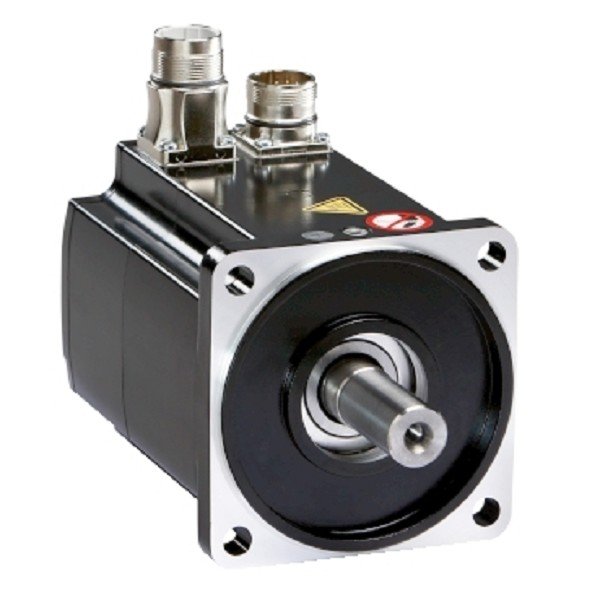

Product or component type : Servo motor
device short name : BMH
Maximum mechanical speed : 3800 rpm
Continuous stall torque :
304.47 lbf.in (34.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
304.47 lbf.in (34.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
Peak stall torque :
915.17 lbf.in (103.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
915.17 lbf.in (103.4 N.m) LXM32.D72N4 24 A, 480 V, three phase
Nominal output power :
5400 W LXM32.D72N4 24 A, 480 V, three phase
5400 W LXM32.D72N4 24 A, 480 V, three phase
Nominal torque :
228.35 lbf.in (25.8 N.m) LXM32.D72N4 24 A, 480 V, three phase
228.35 lbf.in (25.8 N.m) LXM32.D72N4 24 A, 480 V, three phase
Nominal speed :
2000 rpm LXM32.D72N4 24 A, 480 V, three phase
2000 rpm LXM32.D72N4 24 A, 480 V, three phase
Shaft end : Smooth shaft
IP degree of protection : IP54 standard
Speed feedback resolution : 32768 points/turn
Holding brake : With
Mounting support : International standard flange
Electrical connection : Straight connectors
Range compatibility : Lexium 32
[Us] rated supply voltage : 480 V
Network number of phases : Three phase
Continuous stall current : 21.5 A
Continuous power : 6.8 W
Maximum current Irms : 72 A LXM32.D72N4
Maximum permanent current : 78.1 A
Second shaft : Without second shaft end
Shaft diameter : 38 mm
Shaft length : 80 mm
Feedback type : Single turn SinCos Hiperface
Holding torque : 708.06 lbf.in (80 N.m) holding brake
Motor flange size : 205 mm
Number of motor stacks : 1
Back emf constant : 104 V/krpm at 120 °C
Number of motor poles : 10
Rotor inertia : 87.4 kg.cm²
Stator resistance : 0.3 Ohm at 20 °C
Stator inductance : 5.9 mH at 20 °C
Stator electrical time constant : 19.7 ms at 20 °C
Maximum radial force Fr :
3730 N 1000 rpm
2960 N 2000 rpm
2580 N 3000 rpm
Maximum axial force Fa : 0.2 x Fr
Brake pull-in power : 40 W
Type of cooling : Natural convection
Length : 370.5 mm
Centring collar diameter : 180 mm
Centring collar depth : 4 mm
Number of mounting holes : 4
Mounting holes diameter : 14 mm
Circle diameter of the mounting holes : 215 mm
Product weight : 37.9 kg
Unit Type of Package 1 : PCE
Number of Units in Package 1 : 1
Package 1 Height : 36 cm
Package 1 Width : 31 cm
Package 1 Length : 58 cm
Package 1 Weight : 43 kg
Warranty : 18 months
