Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

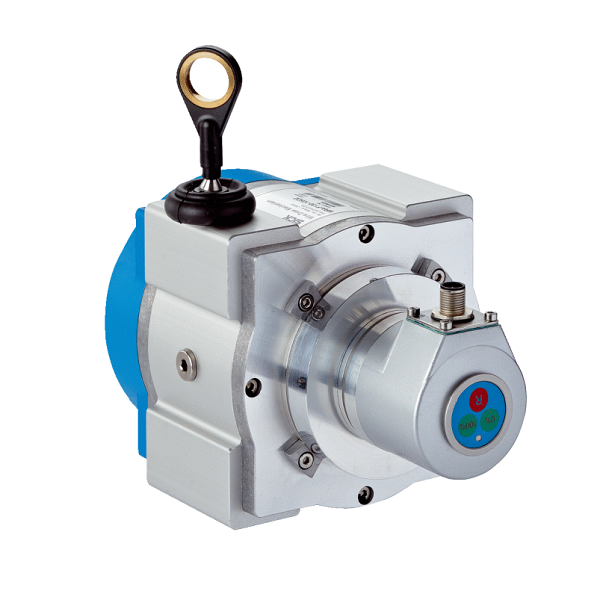

Part Number : BTF13-K1EM05PP
Measurement range : 0 m … 5 m
Encoder : Absolute encoders
Resolution (wire draw + encoder) : 0.04 mm
Repeatability : ≤ 1 mm
Linearity : ≤ ± 2 mm
Hysteresis : ≤ 2 mm
Communication interface : Analog / Current / 4…20 mA
Programmable/configurable : yes
Connection type : Male connector, M12, 5-pin, radial
Supply voltage : 18 V DC … 33 V DC
Operating current : ≤ 80 mA (without load)
MTTFd: mean time to dangerous failure : 600 years (EN ISO 13849-1)
Measuring wire material : Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter : 1.35 mm
Weight (measuring wire) : 7.1 g/m
Housing material, wire draw mechanism : Aluminum (anodised), plastic
Spring return force : 15 N … 20 N
Length of wire pulled out per revolution : 334.1 mm
Life of wire draw mechanism : Typ. 1,000,000 cycles
Actual wire draw length : 5.2 m
Wire acceleration : 70 m/s²
Operating speed : 8 m/s
Mounted encoder : ACM60, ACM60B-S1KE13X06, 6045312
Mounted mechanic : MRA-F130-105D2, 6028626
Weight : 3.2 kg
Shipping Weight : 4.2 kg
