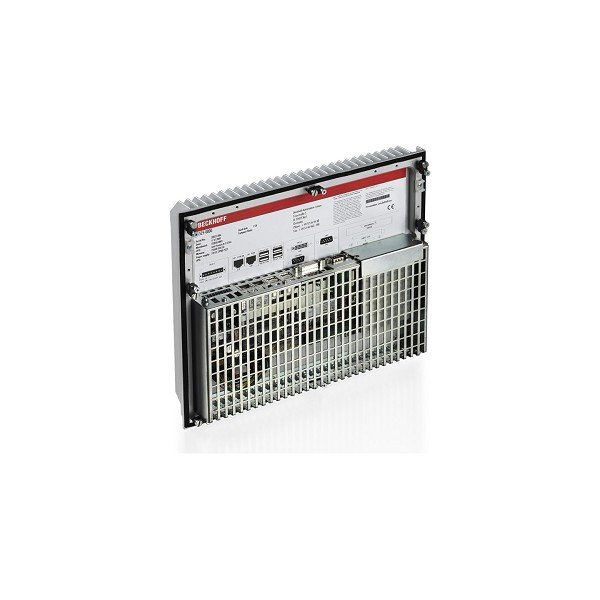

C6525-0060 BECKHOFF Fanless built-in Industrial PC

Estimated Lead Time : 4-6 Weeks

Manufacturer : BECKHOFF

Part Number : C6525-0060

Fanless built-in Industrial PC

C6525-0060 :

Intel® Celeron®, 2 cores (TC2, TC3: 50*) or

Intel® Pentium®, 2 cores (TC2, TC3: 50*) or

Intel® Core™ i3, 2 cores (TC2, TC3: 60*) or

Intel® Core™ i5, 4 cores (TC2, TC3: 70*) or

Intel® Core™ i7, 4 cores (TC2, TC3: 80*)

(6th generation)

or

Intel® Core™ i3, 2 cores (TC3: 60*) or

Intel® Core™ i5, 4 cores (TC3: 70*) or

Intel® Core™ i7, 4 cores (TC3: 80*)

(7th generation)

Device type : Fanless built-in Industrial PC with external cooling to be mounted in the back panel of a control housing or in the wall of a control cabinet

Slots for hard disk/flash : 1 slot for 2½-inch hard disk/SSD, 1 slot for CFast

-Option : 2 slots for CFast or 2 slots for 2½-inch hard disk/SSD

Cooling : passive through heat sink structure outside

Free space for air circulation : 20 cm (7.9″) around the heat sink required

Protection rating : outside IP65, inside IP20

Operating temperature : outside 0…45 °C, inside 0…55 °C

Weight of basic configuration : 5.9 kg (13 lbs)

Dimensions (W x H x D) : 330 x 275 x 82 mm (13″ x 10.8″ x 3.2″)

-Option : with PCIe module slots 109 mm depth (4.2″), with PCIe/PCI plug-in card slots 146 mm (5.8″) depth

Processor : Intel® Celeron® G3900TE 2.3 GHz, 2 cores (TC2, TC3: 50)

-Option : up to Intel® Core™ i7 7700(T) 2.9 GHz, 4 cores (TC3: 80)

Motherboard : 3½-inch motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7

PCIe/PCI slots : –

-Option : 2 PCIe module slots or 2 plug-in card slots PCI or PCIe

Memory : 4 GB DDR4 RAM

-Option : up to 32 GB DDR4 RAM ex factory

Graphic adapter : integrated in the processor

Ethernet : 2 x 100/1000BASE-T on-board

RAID on-board SATA RAID 1 controller

Hard disks/flash : hard disk, 2½-inch, 320 GB

-Option : SSD, CFast

Interfaces : 4 x USB 3.0, 1 x RS232, 1 x DVI

Power supply : 24 V DC

-Option : UPS

Operating system : –

-Option : Windows 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Server 2016

Shipping weight : 7 kg
