Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : C6925-0020

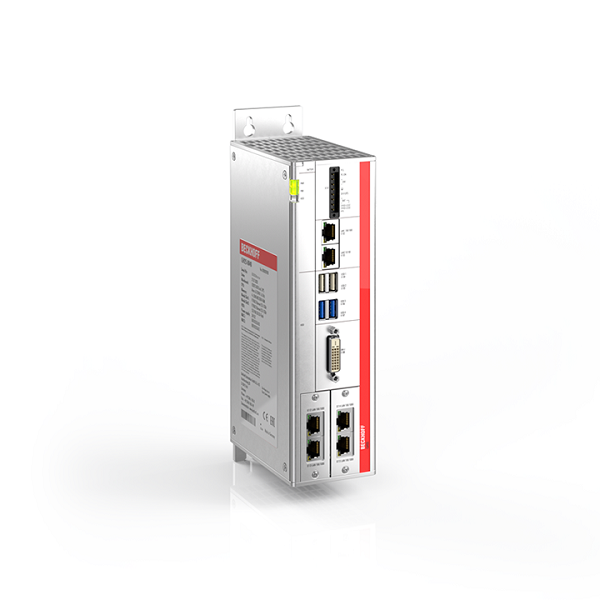

Fanless control cabinet Industrial PC
Device type : Fanless control cabinet Industrial PC
Housing : aluminum housing
Installation : mounting sheet at the rear wall
-Option : mounting sheet at the right side wall
Slots for hard disk/flash : 1 slot for CFast
-Option : 1 slot for 2½-inch hard disk/SSD
Cooling : passive
Free space for air circulation : 5 cm (2″) on top and bottom of the PC required
Protection rating : IP20
Operating temperature : 0…55 °C
Weight of basic configuration : 1.7 kg (3.9 lbs)
Dimensions (W x H x D) : 65 x 233 x 121 mm (2.6″ x 8.8″ x 4.8″), without mounting plate
Processor : Intel® Celeron® ULV 827E 1.4 GHz, 1 core (TC2, TC3: 50)
Motherboard : 3½-inch motherboard for Intel® Celeron® ULV 827E
PCIe/PCI slots : 2 PCIe module slots to plug-in Beckhoff PCIe modules or to led out interfaces of the motherboard ex factory
Interfaces : 4 x USB 2.0, 1 x DVI
Power supply : 24 V DC
-Option : UPS
Operating system : Windows Embedded Compact 7, English
-Option : Windows 7, Windows Embedded Standard 7
Shipping weight : 4 kg
