Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : C6930-0060

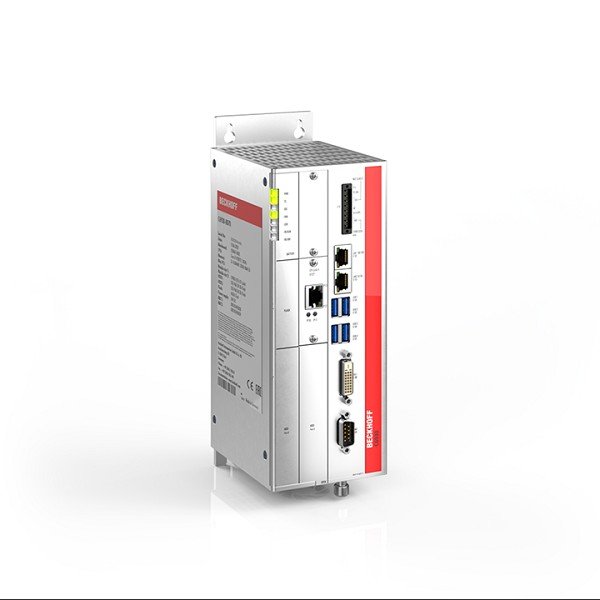

Control cabinet Industrial PC
Device type : Control cabinet Industrial PC
Housing : aluminum housing
Installation : mounting sheet at the rear wall
-Option : mounting sheet at the right side wall
Slots for hard disk/flash : 2 slot for 2½-inch hard disk/SSD, 1 slot for CFast
-Option : 2 slot for CFast
Free space for air circulation : 5 cm (2″) on top and bottom of the PC required
Protection rating : IP20
Operating temperature : 0…55 °C
Weight of basic configuration : 2.1 kg (4.6 lbs)
Dimensions (W x H x D) : 90 x 235 x 121 mm (3.5″ x 9.3″ x 4.8″), without mounting plate
-Option : with plug-in card slots 70 mm wider and 18 mm deeper
Processor : Intel® Celeron® G3900TE 2.3 GHz, 2 cores (TC2, TC3: 50)
-Option : up to Intel® Core™ i7 7700(T) 2.9 GHz, 4 cores (TC3: 80)
Motherboard : 3½-inch motherboard for 6th/7th generation Intel® Celeron®, Pentium®, Core™ i3/i5/i7
PCIe/PCI slots : 2 PCIe module slots to plug-in Beckhoff PCIe modules or to led out interfaces of the motherboard ex factory
-Option : 2 plug-in card slots PCI or PCIe
Memory : 4 GB DDR4 RAM
-Option : up to 32 GB DDR4 RAM ex factory
Graphic adapter : integrated in the processor
Ethernet : 2 x 100/1000BASE-T on-board
-Option : 1 additional 100/1000BASE-T
RAID : on-board SATA RAID 1 controller
Hard disks/flash : hard disk, 2½-inch, 320 GB
-Option : SSD, CFast
Interfaces : 4 x USB 3.0, 1 x RS232, 1 x DVI
Power supply : 24 V DC
-Option : UPS
Operating system : –
-Option : Windows 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise, Windows Server 2016
Shipping weight : 4 kg
