Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : C9900-F305

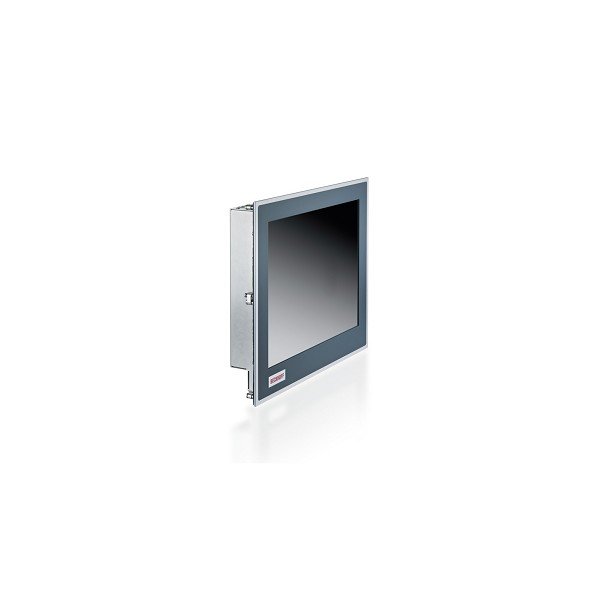

Device type : Economy built-in Control Panel with DVI/USB Extended interface
Housing : stainless steel housing at 12″, 15″ and 19″ display without front keyboard
Display size/resolution : 5.7″ 640 x 480, 6.5″ 640 x 480, 12″ 800 x 600, 15″ 1024 x 768 or 19″ 1280 x 1024
Touch screen : single-finger touch screen or touch pad
Front keyboard : alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display
Protection rating : front side IP65, rear side IP20
Connection technology : DVI-E and USB-E 2.0 enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s.
Interfaces : RJ45 for USB-E 2.0, USB 2.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 2.0
Operating temperature : 0…55 °C
Installation : pull-out clamping levers for fast installation without loose parts
Power supply : 24 V DC
Shipping weight : 3kg
