Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : C9900-F941

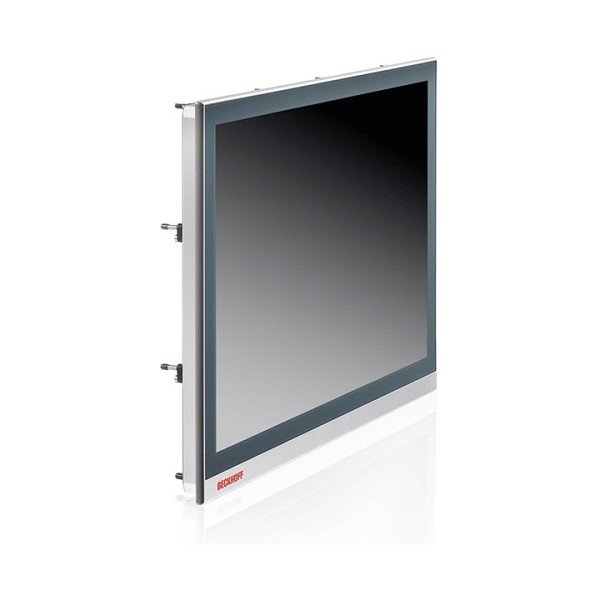

Device type : Multi-touch built-in Control Panel with CP-Link 4 interface
Housing : stainless steel housing with glass front at 7″, 12.1″, 15.6″, 18.5″ and 21.5″ display
Display size/resolution : 7″ 800 x 480, 12″ 800 x 600, 12.1″ 1280 x 800, 15″ 1024 x 768, 15.6″ 1366 x 768, 18.5″ 1366 x 768, 19″ 1280 x 1024, 21.5″ 1920 x 1080 or 24″ 1920 x 1080
Touch screen : Multi-finger touch screen
Protection rating : front side IP65, rear side IP20
Connection technology : DVI-E and USB-E enables to connect the Control Panel at a distance of up to 50 m to the PC. The DVI-E input is compatible to the standard DVI output of a PC. USB-E 2.0 transmits USB 2.0 with 480 Mbit/s.
Interfaces : RJ45 for USB-E 2.0, USB 3.0 input for the direct connection to the standard USB output of a PCs at a distance up to 5 m, DVI input, 2 x USB 3.0 (at more than 3 m distance to the PC limited to USB 2.0)
Operating temperature : 0…55 °C
Installation : Pull-out clamping levers for fast installation without loose parts
Power supply : 24 V DC
Shipping Weight : 3kg
