Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : CP3712-0020

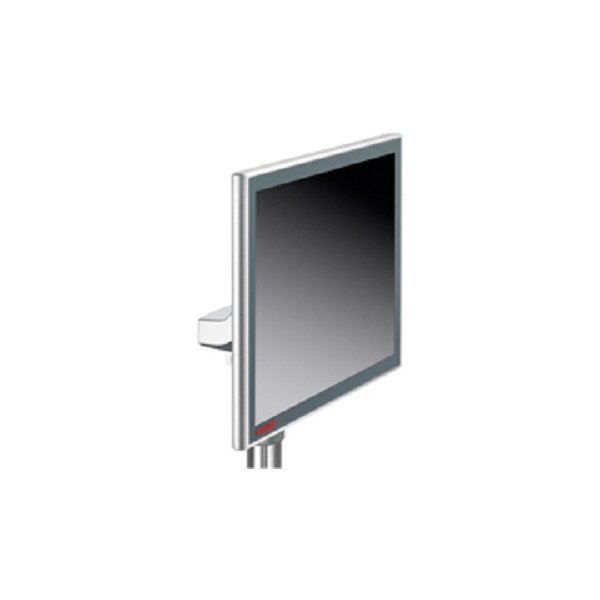

Device type : Multi-touch Panel PC
Housing : aluminum housing for mounting arm installation
Mounting arm adapter : rotatable and tiltable mounting arm adapter for Rittal and Rolec mounting arm systems with 48 mm tube from top. from bottom
Wiring area : for up to 4 IP65 connectors, 2 of these are free
Slots for hard disk/flash : 2 slots for CFast
Cooling : passive through heat sink structure, internal fan for equal heat distribution to all housing walls
Free space for air circulation : 20 cm (7.9″) around the PC required
Protection rating : IP65
Operating temperature : 0…45 °C
Display size/resolution : 12″ 800 x 600, 12.1″ 1280 x 800, 15″ 1024 x 768, 15.6″ 1366 x 768, 18.5″ 1366 x 768, 19″ 1280 x 1024, 21.5″ 1920 x 1080 or 24″ 1920 x 1080
Touch screen : multi-finger touch screen
Processor : Intel Atom® x5-E3930, 1.3 GHz, 2 cores (TC3: 40). Intel Atom® x5-E3940, 1.6 GHz, 4 cores (TC3: 50)
Motherboard : 3½-inch motherboard for Intel Atom® x5-E39xx
PCIe/PCI slots : –. 1 PCIe module slot
Memory : 4 GB DDR4 RAM. up to 8 GB DDR4 RAM ex factory
Ethernet : 2 x 100/1000BASE-T on-board, one of these is led out. 1 additional 100/1000BASE-T
Hard disks/flash : 40 GB CFast. up to 320 GB CFast
Interfaces : 1 x Ethernet 100/1000BASE-T push-pull
Power supply : 24 V DC. UPS
Operating system : –. Windows 10 IoT Enterprise
Shipping Weight : 8KG
