Estimated Lead Time : 4-6 Weeks

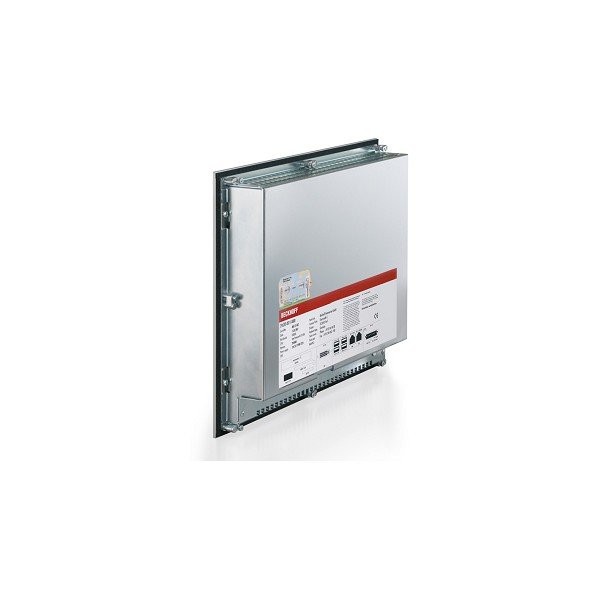

Manufacturer: BECKHOFF
Part Number: CP6703-0001-0050
Device type: Economy built-in Panel PC
Housing :aluminum front with sheet-steel rear cover stainless steel housing with flush mounted touch screen at 12″, 15″ and 19″ display without front keyboard
Slots for hard disk/flash: 1 slot for CFast 2 slots for CFast or 1 slot for 2½-inch hard disk/SSD
Installation: pull-out clamping levers for fast installation without loose parts
Protection rating :front side IP65, rear side IP20
Operating temperature: 0…55 °C
Display size/resolution: 19″ 1280 x 1024
Touch screen: single-finger touch screen or touch pad
Front keyboard: alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display
Processor: Intel Atom® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) up to Intel Atom® E3845 1.91 GHz, 4 cores (TC2, TC3: 50)
Motherboard: 3½-inch motherboard for Intel Atom® E38xx
Memory: 2 GB DDR3L RAM up to 8 GB DDR3L RAM ex factory
Ethernet :2 x 100/1000BASE-T on-board 1 additional 100/1000BASE-T
Hard disks/flash: 40 GB CFast up to 320 GB CFast, hard disk, SSD
Interfaces :4 x USB 2.0, 1 x DVI
Power supply: 24 V DC UPS
Operating system: Windows Embedded Compact 7, English Windows 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise
Shipping Weight: 10Kg
