Estimated Lead Time : 4-6 Weeks

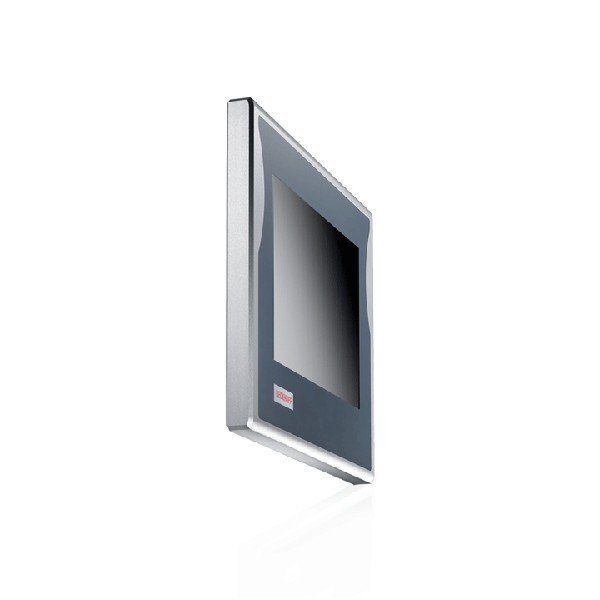

Manufacturer: BECKHOFF
Part Number: CP7721-0002-0040
Device type: Panel PC
Housing: aluminum housing
Installation: 4 threaded holes M6 x 18 mm in the backplane mounting arm adapter
Protection rating: IP65
Operating temperature: 0…45 °C
Display size/resolution: 12″ 800 x 600, 15″ 1024 x 768 or 19″ 1280 x 1024
Touch screen: single-finger touch screen or touch pad
Front keyboard :alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display
Processor: Intel Atom® x5-E3930, 1.3 GHz, 2 cores (TC3: 40) Intel Atom® x5-E3940, 1.6 GHz, 4 cores (TC3: 50)
Motherboard: compact motherboard for Intel Atom® x5-E39xx
Memory: 4 GB DDR4 RAM up to 8 GB DDR3L RAM ex factory
Ethernet: 2 x 10/100/1000BASE-T IP65
Hard disks/flash: 40 GB CFast up to 320 GB CFast
Interfaces: 1 x RS232 serial port interface in the backplane, DIN 12-pin IP65, with adapter cable from DIN 12-pin to D-sub, 9-pin
Power supply: 24 V DC
Operating system: – Windows 10 IoT Enterprise
Shipping Weight: 8Kg
