Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : CP7721-0002-0050

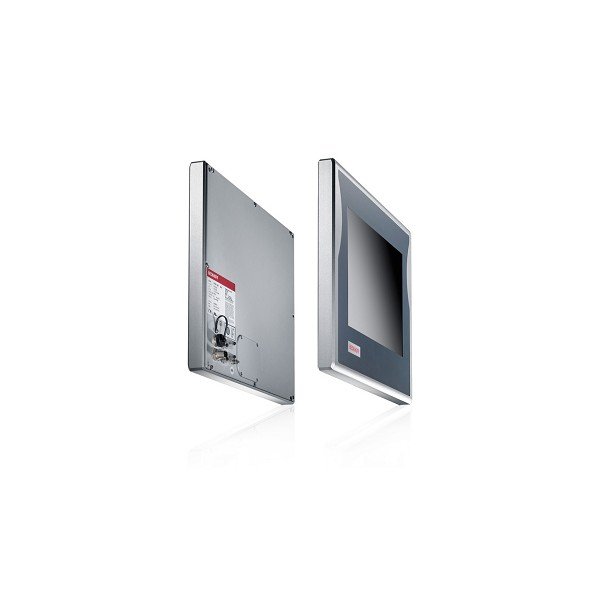

Device type : Panel PC
Housing : aluminum housing
Installation : 4 threaded holes M6 x 18 mm in the backplane. mounting arm adapter
Protection rating : IP65
Operating temperature : 0…45 °C
Display size/resolution : 12″ 800 x 600, 15″ 1024 x 768 or 19″ 1280 x 1024
Touch screen : single-finger touch screen or touch pad
Front keyboard : alphanumerical or numerical PC keyboard in US layout or only function keys, each variant with 10 PLC special keys and LEDs or front laminate without keys, only display
Processor : Intel Atom® x5-E3930, 1.3 GHz, 2 cores (TC3: 40). Intel Atom® x5-E3940, 1.6 GHz, 4 cores (TC3: 50)
Motherboard : compact motherboard for Intel Atom® x5-E39xx
Memory : 4 GB DDR4 RAM. up to 8 GB DDR3L RAM ex factory
Ethernet : 2 x 10/100/1000BASE-T IP65
Hard disks/flash : 40 GB CFast. up to 320 GB CFast
Interfaces : 1 x RS232 serial port interface in the backplane, DIN 12-pin IP65, with adapter cable from DIN 12-pin to D-sub, 9-pin
Power supply : 24 V DC
Operating system : –. Windows 10 IoT Enterprise
Shipping Weight : 8KG
