Estimated Lead Time : 4-6 Weeks
Manufacturer: BECKHOFF
Part Number: CPX3719-0010

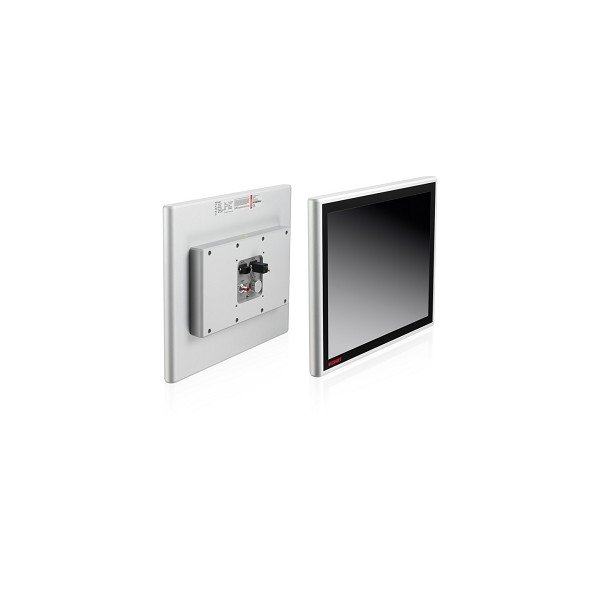

Device type: Multi-touch Panel PC
Housing: aluminum housing with glass front for mounting arm installation for application in hazardous areas of zone 2/22
Mounting arm adapter: 4 M6 threaded holes in distance of 100 x 100 mm in the connection block
Slots for hard disk/flash: 1 slot for CFast 1 slot for 2½-inch hard disk/SSD
Cooling: passive
Protection rating: IP65
Operating temperature: 0…45 °C
Display size/resolution: 19″ 1280 x 1024
Touch screen: multi-finger touch screen
Processor: Intel Atom® E3815, 1.46 GHz, 1 core (TC2, TC3: 40) up to Intel Atom® E3845 1.91 GHz, 4 cores (TC2, TC3: 50)
Motherboard: 3½-inch motherboard for Intel Atom® E38xx
Memory: 2 GB DDR3L RAM up to 8 GB DDR3L RAM
Ethernet: 2 x 100/1000BASE-T on-board, one of these is led out 1 additional 100/1000BASE-T to be led out
Hard disks/flash: 40 GB CFast up to 320 GB CFast
Interfaces: 1 x Ethernet 100/1000BASE-T push-pull, 2-port USB-A socket USB 2.0 with IP65 cover
Power supply: 24 V DC
Operating system: Microsoft Windows Embedded Compact 7, English, supports dual-finger touch screen operation Windows 7, Windows Embedded Standard 7, Windows 10 IoT Enterprise
Approvals/markings: CE, UL, ATEX, IECEx, cFMus
Ex marking: ATEX:
II 3 G Ex nA IIC T5 Gc
II 3 D Ex tc IIIC T100 °C Dc
IECEx:
Ex nA IIC T5 Gc
Ex tc IIIC T100 °C Dc
cFMus:
Class I, II, III, Division 2, Groups A, B, C, D, F and G
Class I, Zone 2, AEx ec IIC T5 Gc
Zone 22, AEx tc IIIB T100°C Dc
Shipping Weight: 10Kg
