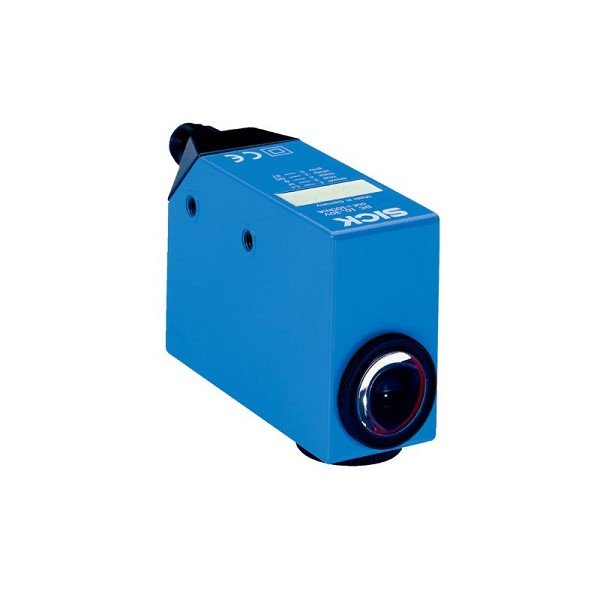

Name: CS81-N3612 SICK Sensors Color Sensors CS8 Part Number : 1028229
SKU: CS81-N3612
Availability: InStock

CS81-N3612 SICK Sensors Color Sensors CS8 Part Number : 1028229

10 in stock

SKU: CS81-N3612 Category: SICK

Delivery: It is expected to be between 5 and 7 days

Returns: 90 days returns. Buyer pays for return shipping.

Warranty: New products 12 months warranty, refurbished products 6 months warranty.

Shipping: Free shipping on orders over $200.

Freight:UPS USPS FedEx DHL

Guaranteed Safe Checkout

Shop with confidence

Automation-buy Money Back Guarantee

Get the item you ordered or your money back. Learn more

Estimated Lead Time : 6 – 8 weeks

Manufacturer : SICK Sensors

Part Number : CS81-N3612

Dimensions (W x H x D) : 30.4 mm x 80 mm x 53 mm

Sensing distance : ≤ 60 mm 1)

Sensing distance tolerance : ± 9 mm

Housing design : Rectangular

Light source : LED, RGB 2)

Wave length : 640 nm, 525 nm, 470 nm

Light spot size : 13 mm x 13 mm

Adjustment : Teach-in button

Teach-in mode : Static 1-point teach-in

Supply voltage : 10 V DC … 30 V DC 1)

Ripple : < 5 Vpp 2) Current consumption : < 120 mA 3) Switching frequency : 1 kHz, 3 kHz, 6 kHz 4) adjustable Response time : 500 µs, 160 µs, 85 µs 5) Switching output : NPN Switching output (voltage) : NPN: HIGH = approx. UV / LOW ≤ 2 V Output (channel) : 1 color Output current Imax. : 100 mA 6) Time delay : Deactivation delay 20 ms, shiftable Connection type : Male connector M12, 5-pin Protection class : II 8) Enclosure rating : IP67 Housing material : Metal, zinc diecast Weight : 400 g Shipping Weight : 2 kg
