Estimated Lead Time : 4-6 Weeks

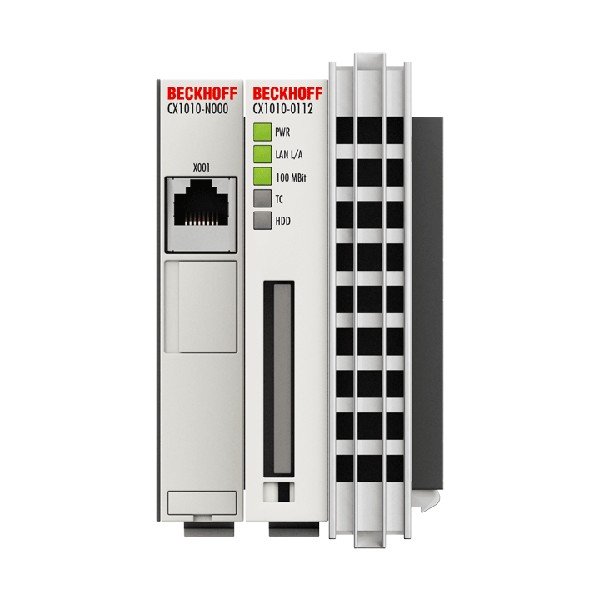

Manufacturer: BECKHOFF
Part Number: CX1010-0122
Processor: compatible with Intel® Pentium® MMX, clock frequency 500 MHz
Number of cores: 1
Flash memory: slot for Compact Flash card, 128 MB included (expandable)
Main memory: 256 MB DDR RAM (not expandable)
Interfaces: 1 x RJ45 10/100 Mbit/s
Diagnostics LED: 1 x power, 1 x LAN speed, 1 x LAN activity, TC status, 1 x flash access
Expansion slot: 1 x Compact Flash type II insert with ejector
Clock: internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded CE 6, Windows Embedded Standard 2009
Control software: TwinCAT 2 PLC runtime or TwinCAT 2 NC PTP runtime
System bus: 16 bit ISA (PC/104)
I/O connection: via power supply module (E-bus, K-bus, K-bus/IP-Link)
Power supply: via system bus (through CX1100-xxxx power supply modules)
Max. power consumption: 8 W
Dimensions (W x H x D): 58 mm x 120 mm x 91 mm
Weight: approx. 355 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: 0…+50 °C/-25…+85 °C
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protection rating: IP20
Approvals/markings: CE, UL
Shipping Weight: 3Kg
