Estimated Lead Time : 4-6 Weeks

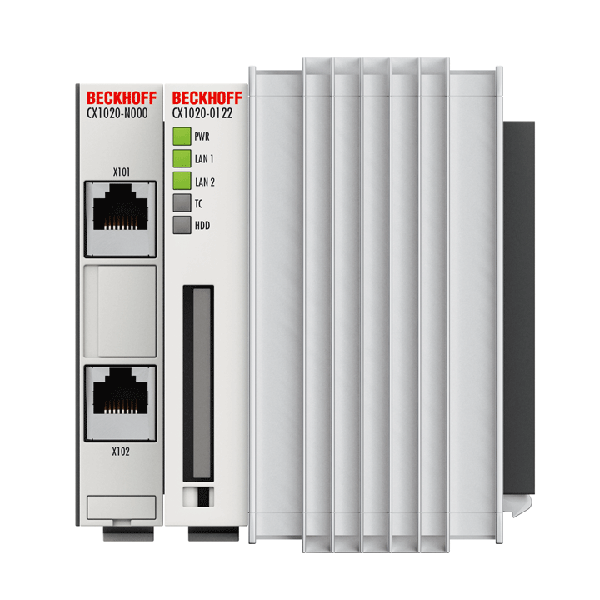

Manufacturer: BECKHOFF
Part Number: CX1020-0013
Processor: Intel® Celeron® M ULV, 1 GHz clock frequency
Number of cores: 1
Flash memory: slot for Compact Flash card, 128 MB included (expandable)
Main memory: 256 MB DDR RAM (expandable ex factory to 1 GB)
Interfaces: 2 x RJ45 10/100 Mbit/s (internal switch)
Diagnostics LED :1 x power, 2 x LAN link/activity, TC status, 1 x flash access
Expansion slot: 1 x Compact Flash type I+II insert with eject mechanism
Clock :internal battery-backed clock for time and date (battery exchangeable)
Operating system: Windows Embedded CE 6, Windows Embedded Standard 2009
Control software: TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime
System bus: 16 bit ISA (PC/104)
I/O connection :via power supply module (E-bus, K-bus, K-bus/IP-Link)
Power supply: via system bus (through CX1100-xxxx power supply modules)
Max. power consumption: 11 W
Dimensions (W x H x D): 96 mm x 112 mm x 99 mm
Weight: approx. 550 g
Relative humidity: 95 %, no condensation
Operating/storage temperature: 0…+50 °C/-25…+85 °C
EMC immunity/emission :conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
Protection rating :IP20
Approvals/markings :CE, UL
Shipping Weight: 3Kg
