Estimated Lead Time: 2 Weeks

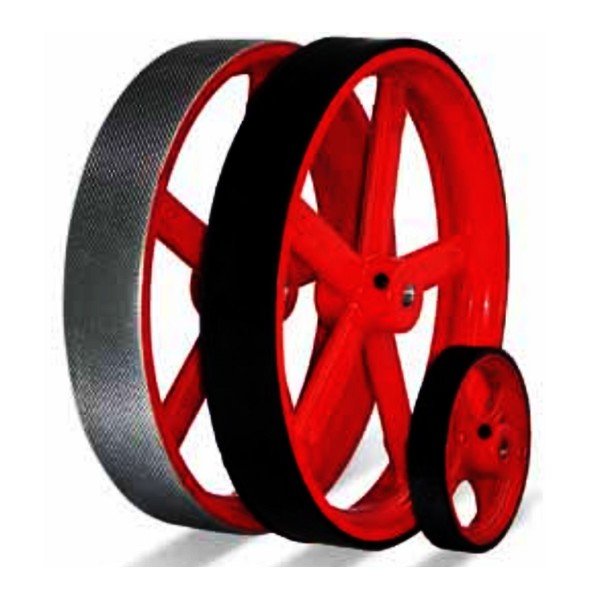

Metric Wheel
Metric wheels are used with encoders mainly for length
measuring applications and the accuracy is given by the
ratio between the wheel circumference and encoder’s
resolution, e.g.:
500 mm / 8192 CPR = 0.061 mm per code
500 mm / 10000 PPR = 0.05 mm per pulse
APPLICATION : Length measurement and positioning
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
Wheel material : Plastic
Wheel surface : Rubber (notched)
Circumference: 200 mm, 500 mm
Diameter: 63 mm, 159 mm
Thickness: 12 mm, 24 mm
Hole diameter: Ø6 mm, Ø10 mm
Operating temperature: -25 to +85°C (-13 to 185°F)
Storage temperature: -25 to +85°C (-13 to 185°F), 98% R.H. non condensing
Shipping Weight : 2 Kg
