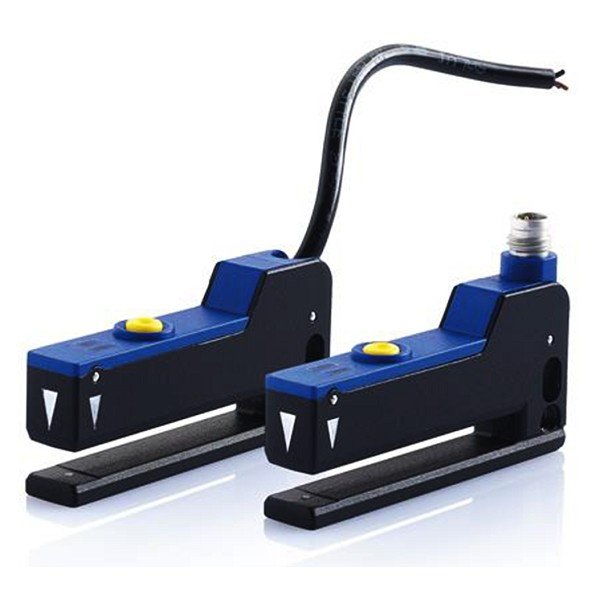

The slot photoelectric sensors of the SR23 series, with 50×5 mm slot size, are designed for the detection of normal labels, as well as thick booklet and multi-layer ones, used increasingly in the food and pharmaceutical industries.
The series distinguishes itself through its fast 40 µs response time and its switching frequency reaching 12kHz, and offers an easy static or dynamic procedure setting, via SET push-button or remote input. The emission is infrared LED with a narrow light beam, allowing resolutions up to 0,5 mm.
All models, characterized by a compact metallic housing and by a M5 threaded hole, a Ø5×8 slotted hole, and the dovetail guide are universal mountable.
2 m cable or M8 4-pole connector versions are available, and with NPN or PNP outputs.
50×5 mm slot size: normal labels, booklet and multi-layer labels
Teach-in or dynamics setting: easy and fast procedure, possible while the labels film is moving
12 kHz switching frequency: high detection repeatability
Compact housing: suitable for application with reduced spaces
0,5 mm minimum size label/gap: high detection reliability for a precise reading
Processing and Packaging machinery
Automatic labelers
Print and apply systems
Shipping Weight : 1 Kg
