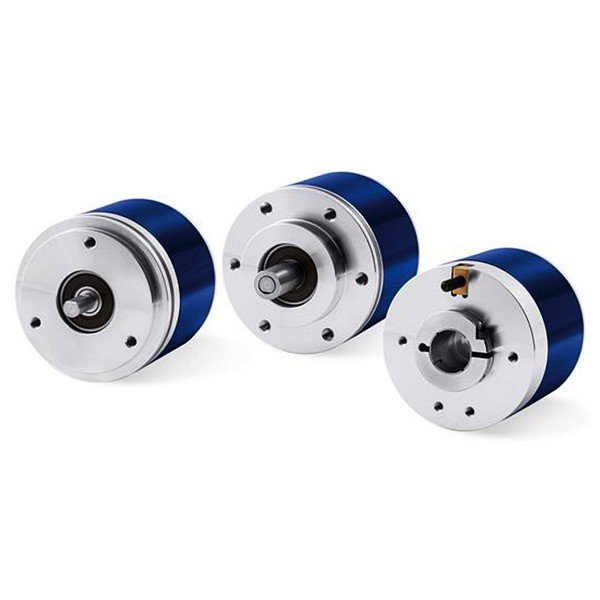

AST58 is the absolute encoder single-turn standard industrial line, recommended for its price/performance ratio, high resolution and accuracy for advanced applications.
The typical applications for this encoder can be found in motion control, automated machinery, conveyor lines.
Aluminium anticorodal metal case Ø58 mm
Solid shaft Ø6 or 10 mm, hollow shaft Ø15 mm
Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm
Single-turn resolution 13 bit (up to 8192 cpr)
M12, M23, or 1.5m cable connection
Gray SSI® tree output signal
Power supply 7.5 – 34 Vdc
APPLICATIONS: Motion control, Conveyor lines, Automated machinery
Shipping weight : 1.1 Kg
