SG4-BSR3-080-OO-W-C
Manufacturer : Datalogic
Category-Safety
SG2 BODY BIG MUTING
SG BODY BIG BASE / MUTING

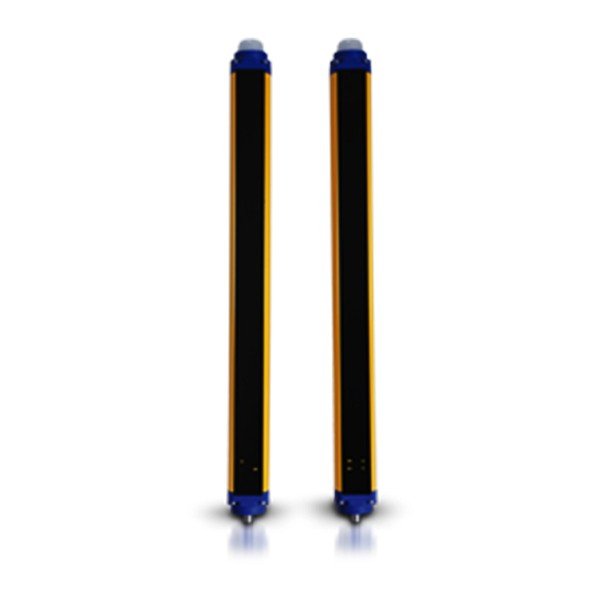

SG BODY BIG (BASE and MUTING) safety light curtains, with sturdy housing and an innovative optical-electronic platform, ensures the high-level performance required in the material handling industry
SG BODY BIG BASE, with manual or automatic reset, EDM function and operating distance up to 60 m, is ideal to protect perimeters and openings in harsh environment, where a robust housing and high emission power is needed.
SG BODY BIG MUTING integrates T and L muting functions with all the advanced features, like anti-interference coding, edged or triggered override, and external muting enable signal.
Big sturdy profile: 52×56 mm (2,08×2,24 in)
3 different types of mounting brackets (angled, top-bottom and rear)
Simple and fast mounting, cabling and configuration
User interface: 4 or 2 LEDs + 7 segment display
Operating distance up to 60 m
2, 3, 4 beams with 500, 800, 900 and 1200mm controlled
Integrated T muting (bidirectional) and L muting (monodirectional) functions, integrated muting lamp (only SG BODY BIG MUTING)
Optional pre-assembled and pre-cabled retroreflective polarized or through-beam sensors (only SG BODY BIG MUTING)
Advanced features: anti-interference coding, edged or triggered override, external muting enable signal
LONG RANGE model with 40mm resolution for hand protection over long distance (60 m)
Automatic machines
Robots
Automatic assembling lines
Palletizers and Depalletizers
Automatic warehouses
Protecting perimeter areas
Shipping Weight : 9 Kg
