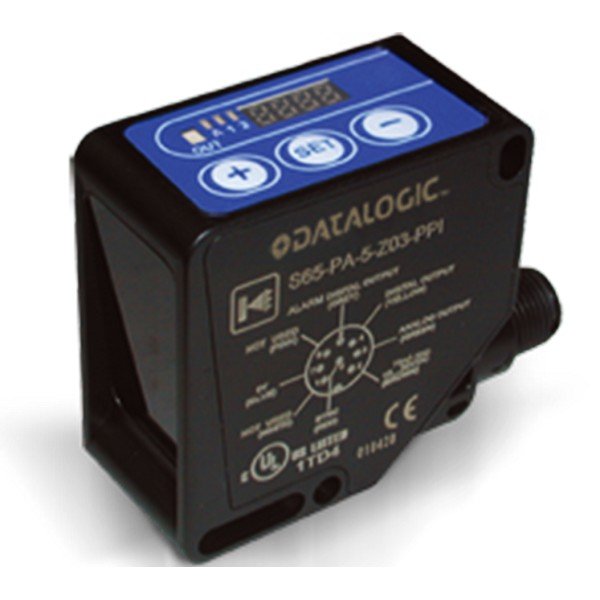

Built in a 50 x 50 mm standard compact housing, the S65-Z series offers a retroreflex line sensor for accurate measurements of the centre or edge position and width of objects.
The detection is made on a reflecting tape, positioned behind the object, with a 150 mm maximum measurement field width and a 200 mm operating distance.
Models with digital output, PNP or NPN, or with serial RS485 all provided with 4-20 mA analogue output proportional to the measurement
This product series has been developed to satisfy to requirements of the following reference applications:
Accurate measures of centre of the object,
Accurate measure of edges of objects,
Accurate measures of width of objects
Shipping Weight: 1.1 Kg
