Estimated Lead Time : 6 – 8 weeks

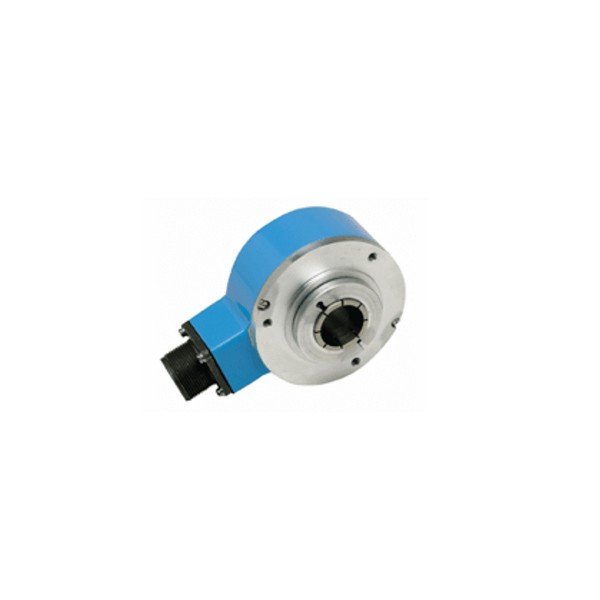

Manufacturer : SICK Sensors
Part Number : DGS35-3J401024
Pulses per revolution : 1,024
Measuring step : 90° electric/pulses per revolution
Measuring step deviation : ± 45° / pulses per revolution
Error limits : ± 45° / pulses per revolution
Communication interface : Incremental
Communication Interface detail : TTL / RS-422
Output frequency : 300 kHz
Load current : 40 mA
Operating current : 100 mA (without load)
Connection type : Male connector, MS, 10-pin, radial
Supply voltage : 8 … 24 V
Reference signal, number : 1
Reference signal, position : 180°, electronically, gated with B negative
Reverse polarity protection : Yes
Mechanical design : Through hollow shaft
Shaft diameter : 1″ 1)
Flange type / stator coupling : Stator coupling over dowel pin supplied by customer
Shaft material : Brass
Flange material : Aluminum
Housing material : Aluminum
Start up torque : 9 Ncm (+20 °C)
Operating torque : 7 Ncm (+20 °C)
Operating speed : 3,000 min?¹
Moment of inertia of the rotor : 490 gcm²
Bearing lifetime : 4.5 x 10^9 revolutions
Angular acceleration : ≤ 100,000 rad/s²
Weight : 1.1 kg 2)
Shipping Weight : 3 kg
