Estimated Lead Time : 1 – 10 Working Days

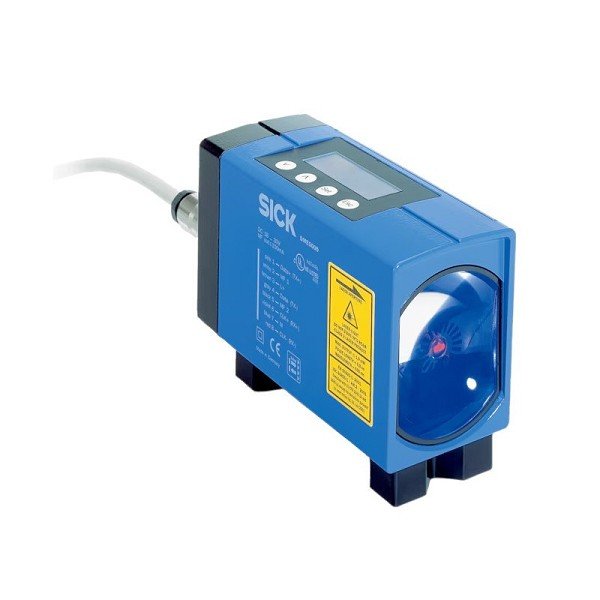

Manufacturer : SICK Sensors
Part Number : 1024084
Supply voltage Vs : DC 18 V … 30 V, limit values
Ripple : < 5 Vpp 1) Initialization time : 1.5 s 2) Housing material : Metal (zinc diecast) Window material : Glass Connection type : Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded Indication : Display Weight : Approx. 1,650 g Current consumption : At 24 V DC < 1,000 mA Dimensions (W x H x D) : 61 mm x 101 mm x 176 mm Enclosure rating : IP65 Protection class : II 3) Measurement range min ... max : 0.15 m ... 70 m, on “diamond grade” reflective tape 1) Target : Reflector Resolution : 0.05 mm ... 5 mm Repeatability : 0.5 mm 1) 2) Measurement accuracy : ± 2 mm Response time : 6 ms Output time : 2 ms Light source : Laser, red 3) / visible red light Laser class : 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:20 Typ. light spot size (distance) : 130 mm (at 70 m) : 270 mm (at 150 m) : 360 mm (at 220 m) Max. movement speed : 10 m/s Shipping Weight : 3 kg
