Estimated Lead Time : 4 – 6 Weeks
Manufacturer : SICK Sensors

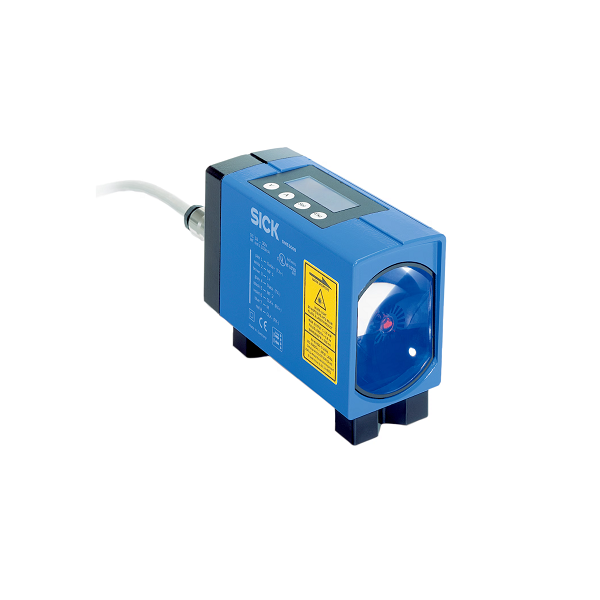

Part Number : DME5000-227
Long Range Distance Sensors
Supply voltage US : DC 18 V … 30 V, limit values
Ripple : < 5 Vpp1) Initialization time : 0.9 s2) Housing material : Metal (zinc diecast) Window material : Glass Connection type : Male connector, 1 x M12, 4-pin, 1 x M12, 8-pin Indication : Display Current consumption : At 24 V DC < 1,000 mA Dimensions (W x H x D) : 61 mm x 101 mm x 176 mm Enclosure rating : IP65 Protection class : II3) Measurement range min ... max : 0.15 m ... 150 m, on “diamond grade” reflective tape1) Target : Reflector Resolution : 0.05 mm ... 5 mm Repeatability : 1 mm 1) 2) Measurement accuracy : ± 3 mm Response time : 6 ms Output time : 2 ms Light source : Laser, red3) visible red light Laser class : 2, complies with 21 CFR 1040.10 and 1040.11 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014) Typ. light spot size (distance) : 130 mm (at 70 m) 270 mm (at 150 m) 360 mm (at 220 m) Max. movement speed : 10 m/s Weight : Approx. 1,650 g Shipping weight : 3 kg
