Estimated Lead Time : 4-6 Weeks

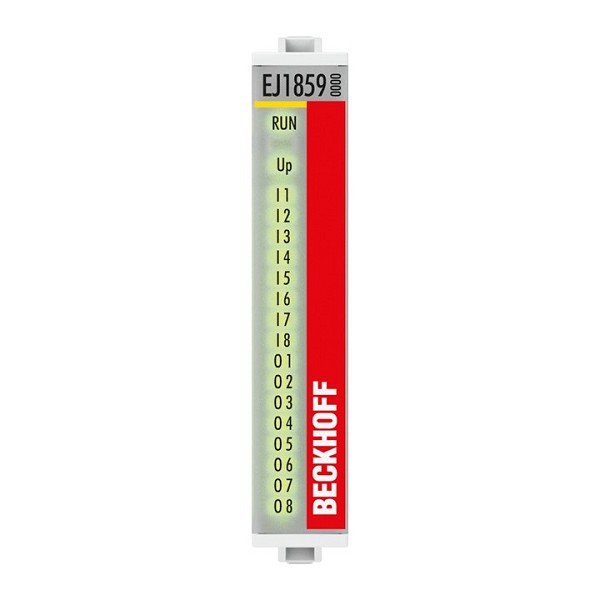

Manufacturer : BECKHOFF
Part Number : EJ1859
Specification : EN 61131-2, type 1/3
Number of channels : 8 inputs + 8 outputs
Nominal voltage : 24 V DC (-15 %/+20 %)
“0” signal voltage : -3…+5 V (EN 61131-2, type 1/3)
“1” signal voltage : 11…30 V (EN 61131-2, type 3)
Input current : typ. 3 mA (EN 61131-2, type 3)
Input filter : typ. 3.0 ms
Distributed clocks : –
Load type : ohmic, inductive, lamp load
Max. output current : 0.5 A (per channel)
Reverse voltage protection : yes
Breaking energy : < 150 mJ/channel Switching times : typ. TON: 60 µs, typ. TOFF: 300 µs Auxiliary power current : no data Current consumption E-bus : typ. 90 mA Electrical isolation : 500 V (E-bus/field potential) Special features : combi module, 8 x output 24 V DC, max. output current 0.5 A, load type: ohmic, inductive, lamp load, reverse voltage protection Weight : approx. 30 g Operating/storage temperature : -25…+60 °C/-40…+85 °C Relative humidity : 95 %, no condensation EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4 Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. : IP20/see documentation Approvals/markings :CE, UL Shipping Weight : 2kg
