Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF
Part Number : EK1101-0080

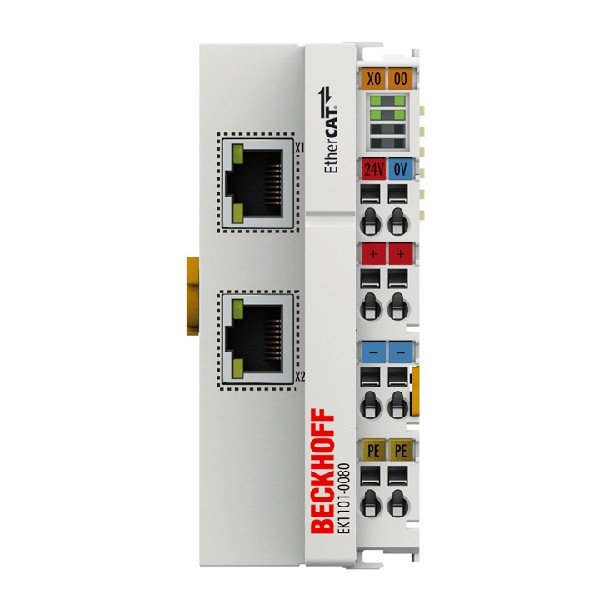

EtherCAT Coupler with ID switch, Fast Hot Connect
Task within EtherCAT system : EtherCAT coupler with ID switch, Fast Hot Connect
Data transfer medium : Ethernet/EtherCAT cable (min. Cat.5), shielded
Distance between stations : max. 100 m (100BASE-TX)
Number of EtherCAT Terminals : up to 65,534
Type/number of peripheral signals : max. 4.2 GB addressable I/O points
Number of configurable IDs : 4096
Protocol : EtherCAT
Delay : approx. 1 µs
Data transfer rates : 100 Mbit/s
Bus interface : 2 x RJ45
Power supply : 24 V DC (-15 %/+20 %)
Current consumption from US : 70 mA + (∑ E-bus current/4)
Current consumption from UP : load
Current supply E-bus : 2000 mA
Power contacts : max. 24 V DC/max. 10 A
Electrical isolation : 500 V (power contact/supply voltage/Ethernet)
Operating/storage temperature : 25…+60 °C/-40…+85 °C
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity : 95 %, no condensation
Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
Protect.rating/installation pos. : IP20/variable
Approvals/markings : CE, UL, ATEX, IECEx
Exmarking :
II 3 G Ex nA IIC T4 Gc
Ex nA IIC T4 Gc
Ex tc IIIC T135 °C Dc
Design form : compact terminal housing with signal LEDs
Material : polycarbonate
Dimensions (W x H x D) : 44 mm x 100 mm x 68 mm
Installation : on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of : double slot and key connection
Marking : labeling of the BZxxx series
Wiring : solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section :
s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG :
s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16
Stripping length : 8…9 mm
Current load power contacts : Imax: 10 A
**s: solid wire; st: stranded wire; f: with ferrule**
Shipping weight : 5 kg
