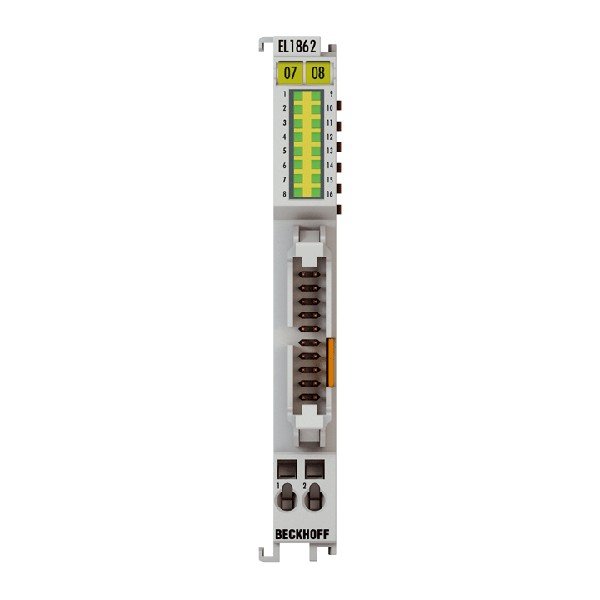

EL1862-0010 BECKHOFF EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching, flat-ribbon cable

Estimated Lead Time : 4-6 Weeks

Manufacturer : BECKHOFF

Part Number : EL1862-0010

EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms, ground switching, flat-ribbon cable

Connection technology : flat-ribbon cable

Specification : ground switching “0”: 18…30 V DC, “1”: 0…7 V DC, typ. 3 mA input current

Number of inputs : 16

Nominal voltage : 24 V DC (-15 %/+20 %)

Rated current : max. 1 A per connection pin

“0” signal voltage : 18…30 V

“1” signal voltage : 0…7 V

Input current : typ. 3 mA (EN 61131-2, type 3)

Input filter : typ. 3.0 ms

Distributed clocks : –

Current consumption power contacts : typ. 45 mA from the 24 V supply (no power contacts)

Current consumption E-bus : typ. 100 mA

Electrical isolation : 500 V (E-bus/field potential)

Bit width in the process image : 16 inputs

Configuration : no address or configuration setting

Special features : –

Weight : approx. 60 g

Operating/storage temperature : 0…+55 °C/-25…+85 °C

Relative humidity : 95 %, no condensation

Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27

EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4

Protect.rating/installation pos. : IP20/variable

Approvals/markings : CE, UL, ATEX

Exmarking : II 3 G Ex nA IIC T4 Gc

Design form : compact terminal housing with signal LEDs

Material : polycarbonate

Dimensions (W x H x D) : 12 mm x 100 mm x 73 mm

Installation : on 35 mm DIN rail, conforming to EN 60715 with lock

Side by side mounting by means of : double slot and key connection

Marking : labeling of the BZxxx series

Wiring : flat-ribbon cable connection

Connection cross-section : common flat-ribbon cables, AWG 28, spacing 1.27 mm

Connection cross-section AWG : AWG 28

Stripping length : –

*s: solid wire; st: stranded wire; f: with ferrule

Shipping weight : 2 kg
