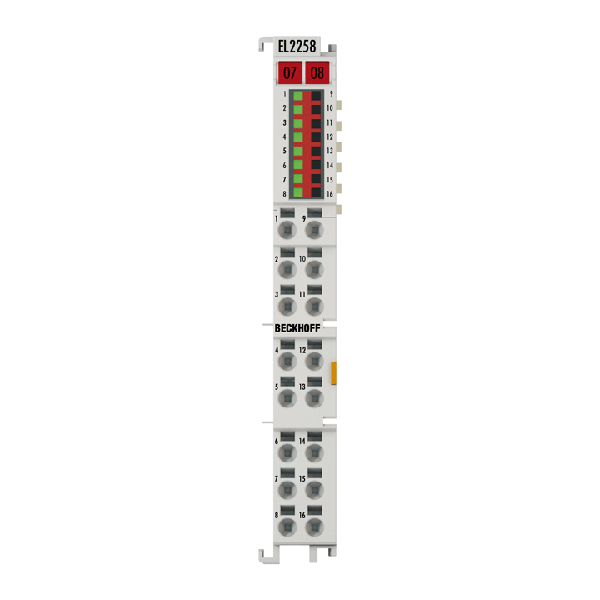

EL2258 BECKHOFF EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, multi-timestamp

Estimated Lead Time : 4-6 Weeks

Manufacturer : BECKHOFF

Part Number : EL2258

EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, multi-timestamp

Connection technology : 2-wire

Number of outputs : 8

Nominal voltage : 24 V DC (-15 %/+20 %)

Load type : ohmic, inductive, lamp load

Oversampling/multi-timestamping factor : n = integer multiple of the cycle time, 1…10

Internal sampling/execution : < 10…40 µs, corresponds to 100…25 k detectable edges/s, dependent on configuration Distributed clocks : yes Distributed clock precision : << 1 µs Output delay through 24 V power section : typ. < 1 µs Max. output current : 0.5 A (short-circuit proof) per channel Output stage : push Short-circuit current : typ. < 1 A Reverse voltage protection : yes Breaking energy : < 150 mJ/channel Switching times : typ. TON: < 1 µs, typ. TOFF: < 1 µs Current consumption E-bus : typ. 130 mA Electrical isolation : 500 V (E-bus/field potential) Current consumption power contacts : typ. 30 mA + load Bit width in the process image : 8 bit output (ch. 1 + ch. 2), 9 byte timestamp Special features : multi-timestamping, auto activation Weight : approx. 55 g Operating/storage temperature : 0…+55 °C/-25…+85 °C Relative humidity : 95 %, no condensation Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. : IP20/variable Pluggable wiring : for all ESxxxx terminals Approvals/markings : CE, UL Design form : HD (High Density) housing with signal LEDs Material : polycarbonate Dimensions (W x H x D) : 12 mm x 100 mm x 68 mm Installation : on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of : double slot and key connection Marking : labeling of the BZxxx series Wiring : solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection cross-section : s*: 0.08…1.5 mm², st*: 0.25…1.5 mm², f*: 0.14…0.75 mm² Connection cross-section AWG : s*: AWG 28…16, st*: AWG 22…16, f*: AWG 26…19 Stripping length : 8…9 mm Current load power contacts : Imax: 10 A *s: solid wire; st: stranded wire; f: with ferrule Shipping weight : 2 kg
