Manufacturer : BECKHOFF
Part Number : EL3004

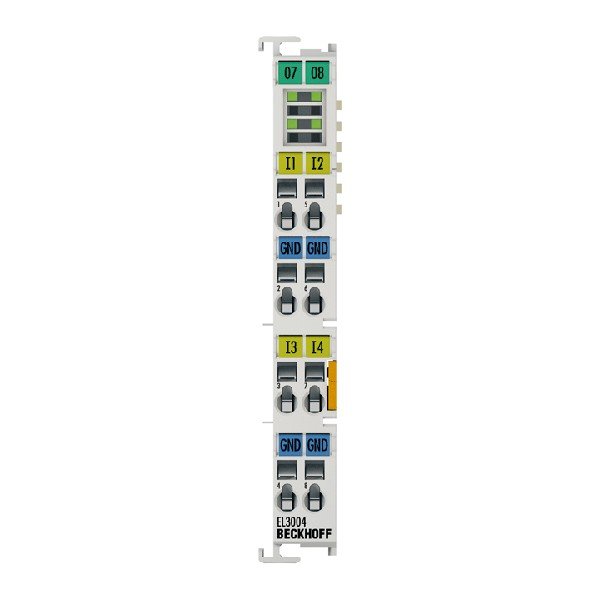

EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended
Number of inputs : 4 (single-ended)
Power supply : via the E-bus
Technology : single-ended
Signal type : single-ended
Signal voltage : -10…+10 V
Distributed clocks : –
Internal resistance : > 130 kO
Input filter limit frequency : 1 kHz
Dielectric strength : max. 30 V
Conversion time : 0.625 ms default setting, configurable, multiplex
Resolution : 12 bit (16 bit presentation incl. sign)
Measuring error : < ±0.3 % (relative to full scale value) Electrical isolation : 500 V (E-bus/signal voltage) Current consumption power contacts : – Current consumption E-bus : typ. 130 mA Bit width in the process image : inputs: 16 byte Configuration : no address or configuration setting required Special features : standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring, overload display in the process data Weight : approx. 70 g Operating/storage temperature : -25…+60 °C/-40…+85 °C Relative humidity : 95 %, no condensation Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. : IP20/variable Pluggable wiring : for all ESxxxx terminals Approvals/markings : CE, UL, ATEX Ex marking : II 3 G Ex nA IIC T4 Gc Design form : compact terminal housing with signal LEDs Material : polycarbonate Dimensions (W x H x D) : 12 mm x 100 mm x 68 mm Installation : on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of : double slot and key connection Marking : labeling of the BZxxx series Wiring : solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection cross-section : s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² Connection cross-section AWG : s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 Stripping length : 8…9 mm Current load power contacts : Imax: 10 A *s: solid wire; st: stranded wire; f: with ferrule Shipping weight : 2 kg
