Manufacturer : BECKHOFF
Part Number : EL3112-0011

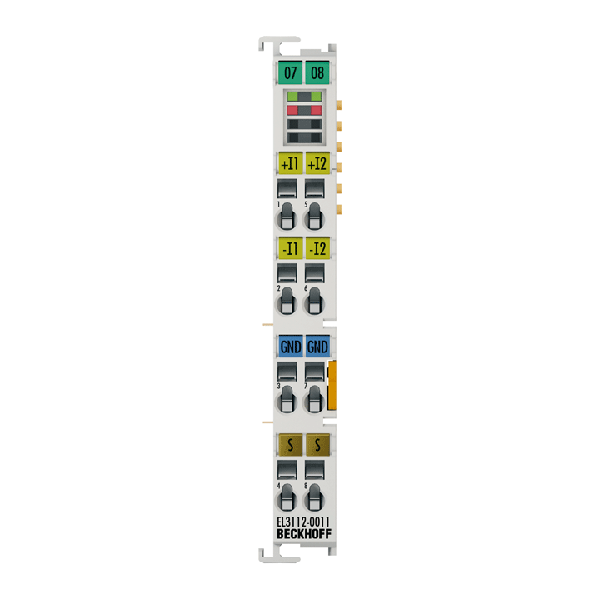

EtherCAT Terminal, 2-channel analog input, current, ±20 mA, 16 bit, differential
Number of inputs : 2 (differential)
Power supply : via the E-bus
Signal type : differential
Signal current : -20…+20 mA
Oversampling factor : –
Input signal bandwidth : see input filter
Distributed clocks : yes
Distributed clock precision : << 1 µs Internal resistance : typ. < 85 Ω Input filter limit frequency : 5 kHz Common-mode voltage UCM : max. 10 V Conversion time : ~ 50 µs (fast mode ~ 35 µs) Resolution : 16 bit (incl. sign) Measuring error : < ±0.3 % (relative to full scale value) Surge voltage resistance : 35 V DC Electrical isolation : 500 V (E-bus/signal voltage) Current consumption power contacts : – Current consumption E-bus : typ. 170 mA Bit width in the process image : inputs: 8 byte Special features : standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight : approx. 55 g Operating/storage temperature : -25…+60 °C/-40…+85 °C Relative humidity : 95 %, no condensation Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. : IP20/variable Approvals/markings : CE, UL, ATEX Ex marking : II 3 G Ex nA IIC T4 Gc Design form : compact terminal housing with signal LEDs Material : polycarbonate Dimensions (W x H x D) : 12 mm x 100 mm x 68 mm Installation : on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of : double slot and key connection Marking : labeling of the BZxxx series Wiring : solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection cross-section : s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² Connection cross-section AWG : s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 Stripping length : 8…9 mm Current load power contacts : Imax: 10 A *s: solid wire; st: stranded wire; f: with ferrule Shipping weight : 2 kg
