Estimated Lead Time : 4-6 Weeks

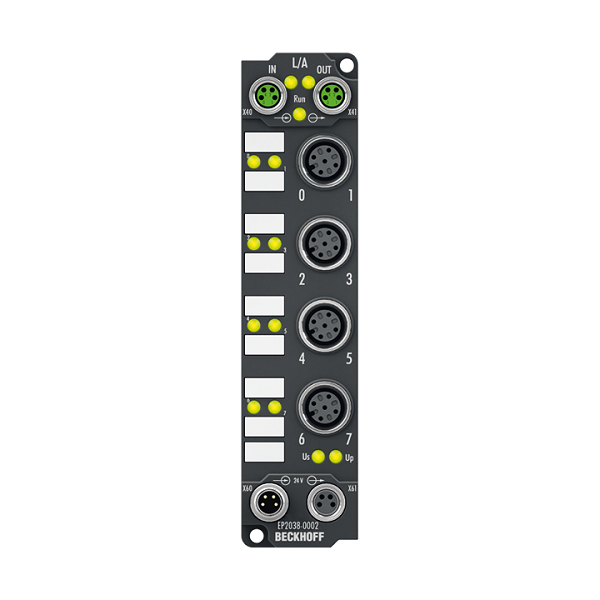

Manufacturer : BECKHOFF
Part Number : EP2038-0002
Protocol : EtherCAT
Bus interface : 2 x M8 socket, shielded, screw type
Number of outputs : 8
Output connections : M12 x 1, 5-pin, a-coded
Load type : ohmic, inductive, lamp load
Nominal output voltage : 24 V DC (-15 %/+20 %)
Max. output current : 2 A per channel, individually short-circuit proof, ∑ 4 A
Switching times : typ. TON: 200 µs, typ. TOFF: 200 µs
Short-circuit current : typ. 15 A
Distributed clocks : –
Current consumption from US : 120 mA
Auxiliary power current : typ. 20 mA + load
Diagnostics : short-circuit, open load detection (min. load > 200 mA)
Power supply connection :feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation : 500 V
Weight : approx. 165 g
Operating/storage temperature : -25…+60 °C/-40…+85 °C
Vibration/shock resistance :conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. : IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings : CE, UL
Shipping Weight : 2KG
