Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF

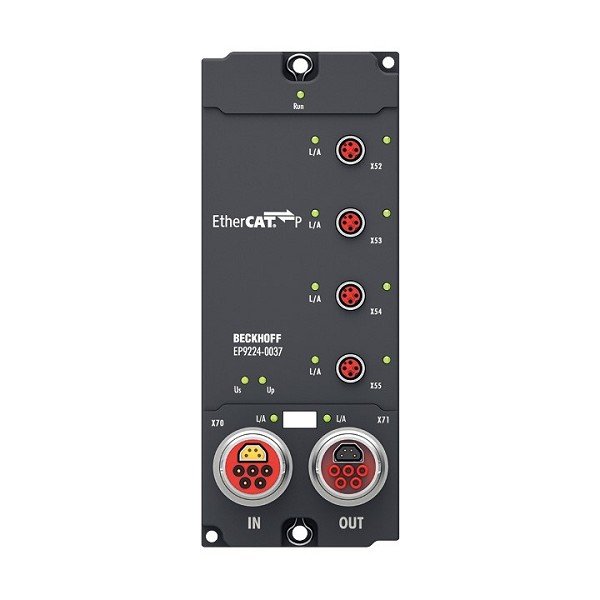

Part Number : EP9224-0037
Protocol : EtherCAT
Bus interface : 2 x B17 ENP, shielded, bayonet fitting
Task within EtherCAT system : coupling to the EtherCAT network, EtherCAT P junction, feed in and monitoring of US and UP
Number of channels : IN: 1 x ENP, OUT: 1 x ENP, 4 x EtherCAT P
Infeed : ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Power feedthrough : ENP B17 5-pin, max. 15.5 A per US/UP at 45 °C
Current rating per port : max. 3 A per US and UP (M8 P-coded)
Data logging : recording of relevant data in case of failure
Special features : input voltages/currents, output currents via process data
Operating/storage temperature : -25…+60 °C/-40…+85 °C
Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Approvals/markings : CE, (UL in preparation)
Shipping weight : 2kg
