Estimated Lead Time : 4-6 Weeks
Manufacturer : BECKHOFF

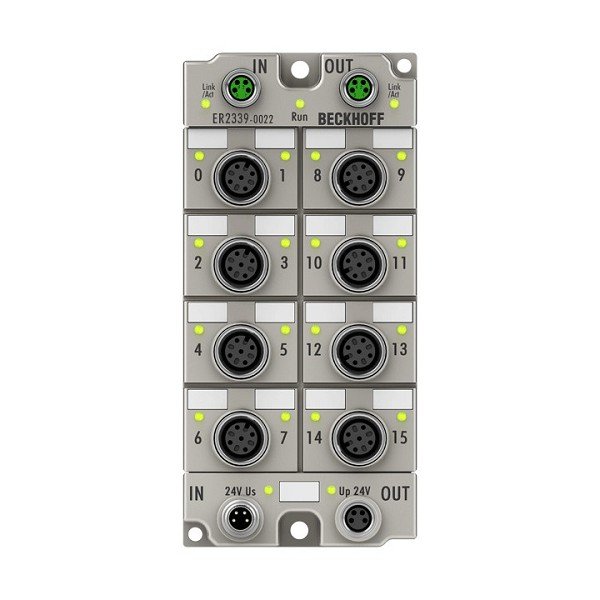

Part Number : ER2339-0022
Protocol : EtherCAT
Bus interface : 2 x M8 socket, shielded, screw type
Specification : EN 61131-2, type 1/3
Number of channels : 16 digital inputs or outputs
Input/output connections : M12x 1, 5-pin, a-coded
Input filter : 3.0 ms
“0” signal voltage : -3…+5 V
“1” signal voltage : 11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply : from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type : ohmic, inductive, lamp load
Rated load voltage : 24 V DC (-15 %/+20 %)
Max. output current : 0.5 A per channel, individually short-circuit proof, ∑ 4 A
Switching times : typ. TON: 60 µs, typ. TOFF: 300 µs
Short-circuit current : typ. 1.5 A
Auxiliary power current : typ. 20 mA + load
Current consumption from US : 120 mA
Power supply connection : feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Electrical isolation : 500 V
Special features : freely configurable inputs or outputs
Weight : approx. 450 g
Operating/storage temperature : -25…+60 °C/-40…+85 °C
Vibration/shock resistance : conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission : conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. : IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings : CE, UL
Shipping Weight : 2kg
