Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors
Part Number : HL18T-P1G3BB
Sub product family : deTec4 Core Ex
Application : Explosive areas
System part : Sender
Compatible receiver : 1068406
Resolution : 30 mm
Scanning range : 10 m
Protective field height : 600 mm
Synchronization : Optical synchronisation

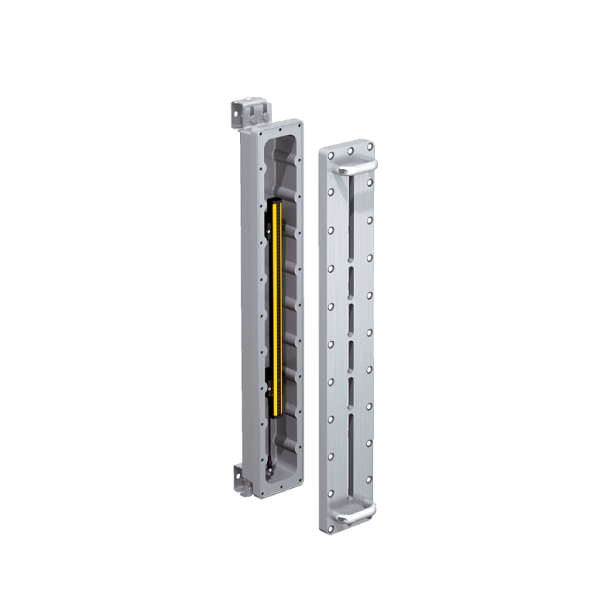

Items supplied : Sender in explosion-proof enclosure with connecting cable, 30 m , 2 handles including screws
Type : Type 4 (IEC 61496-1)
Safety integrity level : SIL 3 (IEC 61508)
Category : Category 4 (ISO 13849-1)
Performance level : PL e (ISO 13849-1)
PFHD (mean probability of a dangerous failure per hour) : 3.7 x 10-9
TM (mission time) : 20 years (ISO 13849-1)
Safe state in the event of a fault : At least one OSSD is in the OFF state
System connection : Connecting cable, 30 m, flying leads, 5-wire
Length of cable : 30 m
Cable diameter : 7.4 mm
Conductor cross section : 0.75 mm²
Display elements : LEDs
Protection class : III (IEC 61140)
Supply voltage VS : 24 V DC (19.2 V … 28.8 V)
Ripple : ≤ 10 %
Power consumption typical : 0.91 W (DC)
Dimensions : See dimensional drawing
Housing cross-section : 161.8 mm x 142.1 mm
Housing material : Aluminum cast/AlSi7Mg0.6
Shipping Weight : 7 kg
