Estimated Lead Time : 4 – 6 Weeks
Manufacturer : SICK Sensors

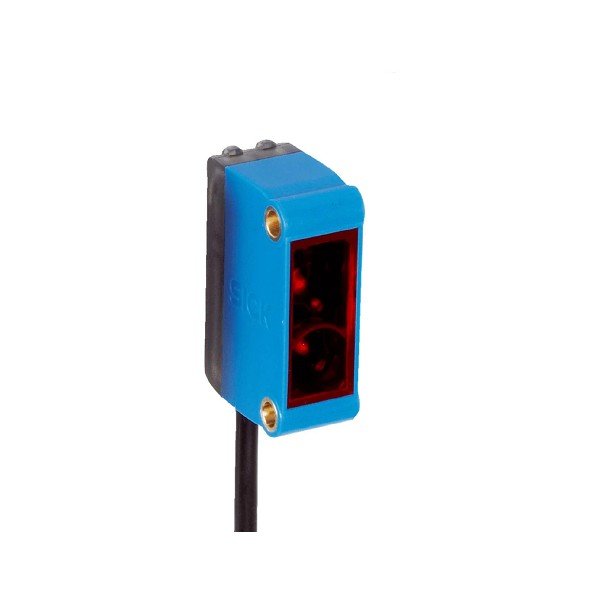

Part Number : GL6-P6112
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Sensing range max. : = 6 m1)
Sensing range : = 5 m1)
Polarisation filters : Yes
Emitted beam
Light source : PinPoint LED2)
Type of light : Visible red light
Light spot size (distance) : Ø 8 mm (350 mm)
Key LED figures
Wave length : 650 nm
Adjustment : None
Items supplied :Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250
Supply voltage UB : 10 V DC … 30 V DC1)
Ripple : ± 10 %2)
Current consumption : 30 mA3)
Protection class : III
Digital output
Type : PNP
Switching mode : Light/dark switching
Switching mode selector : Selectable via light/dark selector
Signal voltage PNP HIGH/LOW : VS – (≤ 3 V) / approx. 0 V
Output current Imax. : ≤ 100 mA 4)
Response time : < 625 µs 5) Switching frequency : 1,000 Hz 6) Circuit protection : A 7) B 8) D 9) Housing : Rectangular Dimensions (W x H x D) : 12 mm x 31.5 mm x 21 mm Connection : Cable with M8 male connector, 4-pin1) Connection detail Length of cable (L) : 300 mm1) Material Housing : Plastic, ABS/PC Front screen : Plastic, PMMA Cable : PVC Weight : 60 g Shipping weight : 1 kg
