Estimated Lead Time : 6 – 8 weeks.
Manufacturer : SICK Sensors

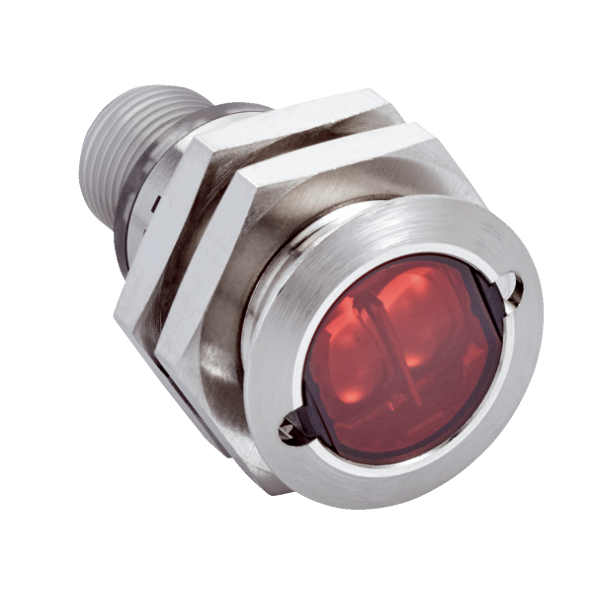

Part Number : GRL18S-F235Y
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Dimensions (W x H x D) : 18 mm x 18 mm x 38.1 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Optical axis : Axial, fully flush
Sensing range max. : 0.03 m … 7.2 m
Sensing range : 0.06 m … 6 m
Type of light : Visible red light
Light source : PinPoint LED
Light spot size (distance) : Ø 175 mm (7 m)
Wave length : 650 nm
Adjustment : None
LED green : Operating indicator , Static on: power on
LED yellow : Status of received light beam , Static on: object not present , Static off: object present
Supply voltage UB : 10 V DC … 30 V DC
Ripple : < 5 Vpp Current consumption : 30 mA Switching output : PNP Switching mode : Dark switching Signal voltage PNP HIGH/LOW : VS - (≤ 3 V) / approx. 0 V Output current Imax. : ≤ 100 mA Response time : < 500 µs Switching frequency : 1,000 Hz Connection type : Connector M12, 3-pin Circuit protection : A , B , D Protection class: III Polarisation filter : yes Housing material : Metal, Nickel-plated brass and ABS Optics material : Plastic, PMMA Enclosure rating : IP67 Items supplied : Fastening nuts (2 x), Reflector P250 Electromagnetic compatibility (EMC) : EN 60947-5-2 Ambient operating temperature : –25 °C ... +55 °C Ambient temperature, storage : –40 °C ... +70 °C Shipping Weight : 1 kg
