Estimated Lead Time : 6- 8 weeks.

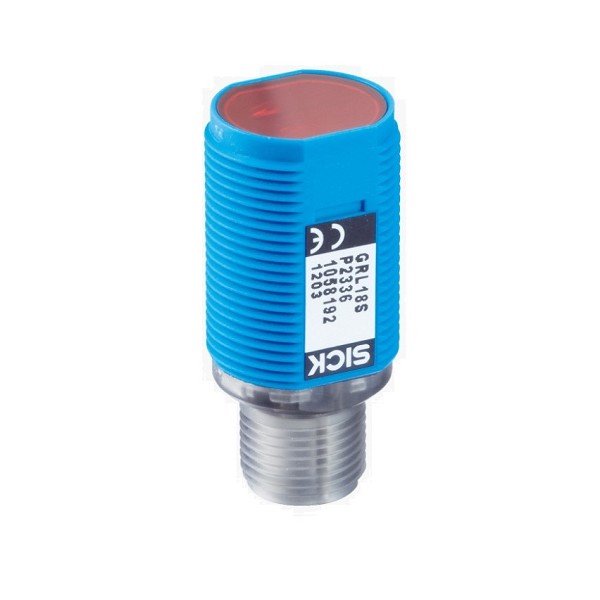

Manufacturer : SICK Sensors
Part Number : 1077674
Functional principle : Photoelectric retro-reflective sensor
Functional principle detail : Dual lens
Dimensions (W x H x D) : 18 mm x 18 mm x 38.1 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Sensing range max. : 0.03 m … 7.2 m 1)
Sensing range : 0.06 m … 6 m 1)
Type of light : Infrared light
Light source : PinPoint LED 2)
Light spot size (distance) : Ø 175 mm (7 m)
Wave length : 650 nm
Adjustment : None
Indication : LED green Operating indicator Static on: power on LED yellow Status of received light beam Static on: object present Static off: object not present
Current consumption : 30 mA
Switching output : NPN
Switching mode : Light/Dark switching
Output current Imax. : = 100 mA
Response time : < 1,000 µs 4)
Switching frequency : 500 Hz 5)
Connection type Cable : Male connector M12, 4-pin
Circuit protection : A 6) C 7) D 8)
Housing material : Plastic, ABS
Optics material : Plastic, PMMA
Enclosure rating : IP67
Ambient operating temperature : –25 °C ... +55 °C
Ambient temperature, storage : –40 °C ... +75 °C
Weight : 0.017kg
Shipping Weight : 1 kg
