Estimated Lead Time: 6 – 8 Weeks.

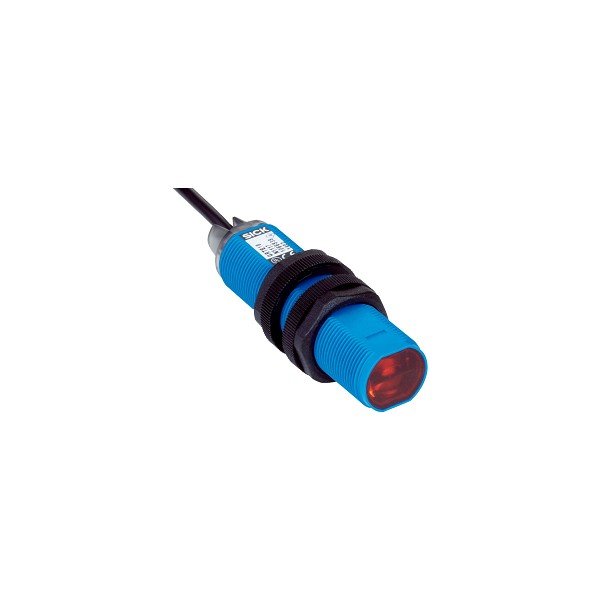

Manufacturer: SICK Sensors
Part Number : GRSE18-P1147
Functional principle : Through-beam photoelectric sensor
Dimensions (W x H x D) : 18 mm x 18 mm x 71.5 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Optical axis : Axial
Sensing range max. : 0 m … 15 m
Sensing range : 0 m … 10 m
Type of light : Visible red light
Light source : PinPoint LED 1)
Light spot size (distance) : Ø 250 mm (10 m)
Wave length : 650 nm
Adjustment : Potentiometer
Indication :
LED green :
Operating indicator
Static on: power on
LED yellow :
Status of received light beam
Static on: object not present
Static off: object present
Supply voltage UB : 10 V DC … 30 V DC 1)
Ripple : < 5 Vpp 2) Current consumption : 30 mA Switching output : PNP Output function : Complementary Switching mode : Light/dark switching Signal voltage NPN HIGH/LOW : VS - (≤ 3 V) / approx. 0 V Output current Imax. : ≤ 100 mA 3) Response time : < 500 µs 4) Switching frequency : 1,000 Hz 5) Connection type : Cable, 4-wire, 2 m 6) Cable material : PVC Circuit protection : A 7) B 8) D 9) Protection class : III Housing material : Plastic, ABS Optics material : Plastic, PMMA Enclosure rating : IP67 Items supplied : Fastening nuts (4 x) Weight : 105 g Shipping Weight: 1 kg
