Estimated Lead Time : 6- 8 weeks.

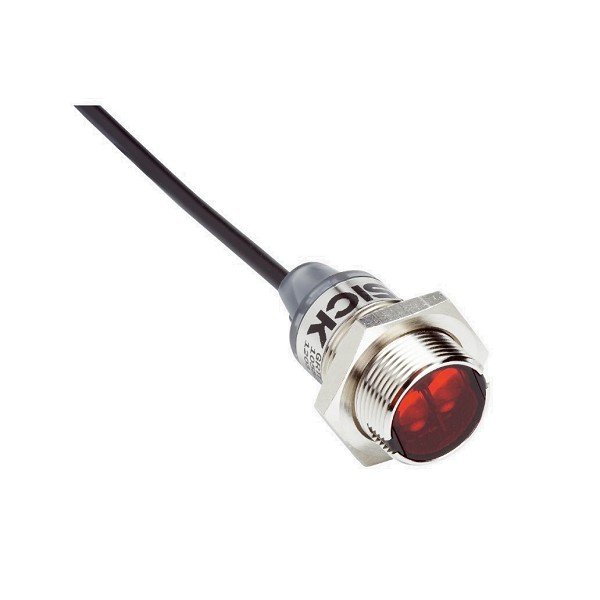

Manufacturer : SICK Sensors
Part Number : 1058205
Functional principle : Photoelectric proximity sensor
Functional principle detail : Energetic
Dimensions (W x H x D) : 18 mm x 18 mm x 38.1 mm
Housing design (light emission) : Cylindrical
Thread diameter (housing) : M18 x 1
Sensing range max. : 5 mm … 550 mm 1)
Sensing range : 10 mm … 400 mm 1)
Type of light : Visible red light
Light source : PinPoint LED 2)
Light spot size (distance) : Ø 9 mm (400 mm)
Wave length : 650 nm
Adjustment : Potentiometer, 270°
Indication : LED green Operating indicator Static on: power on LED yellow Status of received light beam Static on: object present Static off: object not present
Current consumption : 30 mA
Switching output : PNP
Switching mode : Light switching
Output current Imax. : ≤ 100 mA
Response time : < 1,000 µs 4)
Switching frequency : 500 Hz 5)
Connection type Cable : Cable, 3-wire, 2 m 6)
Cable material : PVC
Circuit protection : A 7) C 8) D 9)
Housing material : Metal, Nickel-plated brass and ABS
Optics material : Plastic, PMMA
Enclosure rating : IP67
Ambient operating temperature : –25 °C ... +55 °C
Ambient temperature, storage : –40 °C ... +75 °C
Weight : 0.36 kg
Shipping Weight : 1.4 kg
