Estimated Lead Time : Usually ships in 1-10 working days.

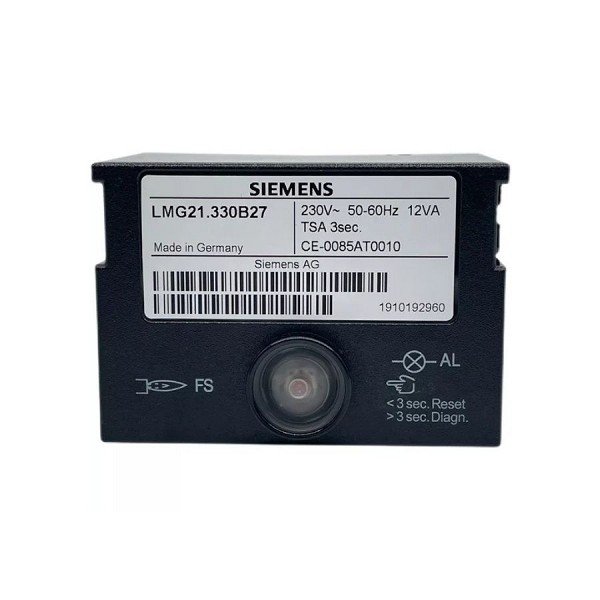

Manufacturer : Siemens
Product No. : LMG21.330B27
Product Type : Burner Controls
Mains voltage : AC 230 V +10/−15 %
Mains frequency : 50…60 Hz ±6 %
Power consumption : 12 VA
Primary fuse : max. 10 A (slow)
Built-in fuse : T6.3H250V to DIN 60 127
Perm. mounting position : optional
Input current at terminal 12 : max. 5 A
Degree of protection : IP 40, to be ensured through mounting
Perm. cable length terminal 1 : max. 1 m at 100 pF / m (max. 3 m at 15 pF / m)
Perm. cable length terminals 8 and 10 : max. 20 m at 100 pF / m
Perm. cable length other terminals : max. 3 m at 100 pF / m
Weight : approx. 0.16 Kg
Shipping Weight : 2.5 Kg
